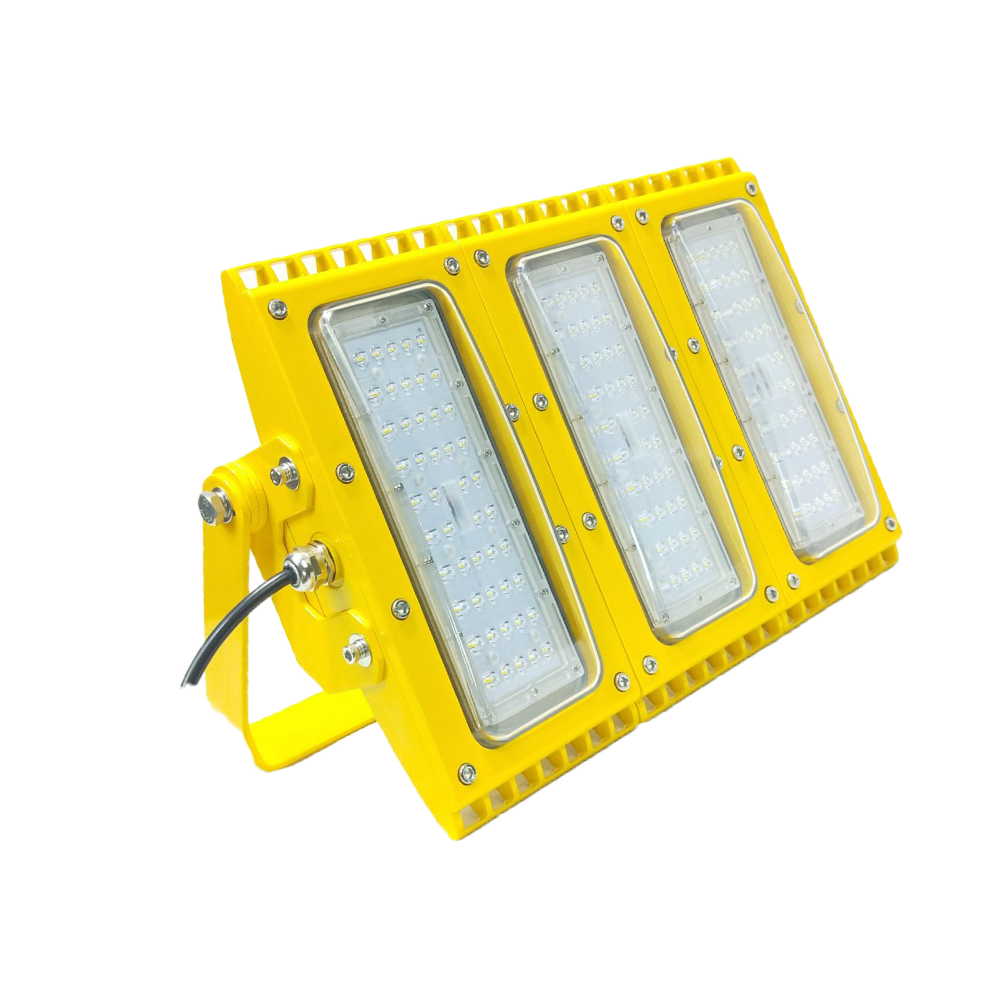

BFC8600-A LED explosion-proof lamp

The shell material adopts a composite copper aluminum alloy, which can withstand 4 times the hydraulic testing. The imported die-casting machine is suppressed, the sand holes are small, the force is uniform, and the overall structure is firm. The waterproof requirements are met in the structural design. The product shell protection level reaches IP65.

Product Documentation

Scope

In order to satisfy oil, petrochemical, metallurgy, metallurgy, railway, power plants, ships and other flammable and explosive field lightingNeed needs, develop and develop and produceBF8600ATypeled explosion-prooflamp.It is suitable for flammable and explosive places and various indoor and outdoor lighting, construction site, installation, and facilities lighting.

Features


■ LED Explosion Light has passed the explosion-proof certification of national authoritative institutions, with the highest explosion-type explosion-proof level, has excellent explosion-proof and anti-static effects, and can work safely at various flammable and explosive fields.

To meet the waterproof requirements from the structural design, the product shell protection level meetsIP65。

■ The shell material is composed of composite copper and aluminum alloy, which can withstand 4 times the hydraulic test. The import die-casting machine is suppressed, the sand holes are small, the force is uniform, and the overall structure is firm;

■ Lantern fasteners use 304 immortal steel, stronger anticorrosive ability;

■ The light source uses XM-LED, low thermal resistance, high light flux, UL-recognized aluminum-based board to ensure that LED heat dissipation is long and fast;

■ The power supply module is developed by the most well-known "Mao Shuo" company in China, and uses high reliability foreign components such as rubies, making the power life far more reliable than the low-cost ordinary power supply in the market.

LED explosion-proof lamps are light weight, which can suck top, wall-mounted, boom-type, French bar and other installation methods.

Technical parameter

name    say

LED explosion light

Light    source

LED

Rated power

150W

Explosion-proof

Ex d II C T6

Input voltage

AC220V (optional AC/DC12-36V)

Protection level

IP65

Anticorrosive grade

WF2

Introduce cable

Φ8-Φ10mm

Ambient temperature

-20~+40

Life

100000h

Appearance

Φ460×310×120mm

Heavy    quantity

9KG

Light curve
Installation size
