Scope
|
In order to meet the needs of flagmable and vulnerable fileds such as petroleum, petroachmical, metallurgy, Metallurgy, Railway, POWER PLANTS, And Ships It is deverted and developedbfc8767atypeled explosion light.It is suitable for flammable and explosive places and various indoor and outdoor lighting, construction site, installation, and facilities lighting.
■ Device platform, equipment floor area, main auxiliary workshop, channel, pipeline, joint station, transit station, pump valve shed, tank, material mouth, boardwalk, warehouse chamber, warehouse and other places.
■ Dangerous Gas Area 1 and 2 Area; Dangerous Dust21 Area and District 22.
|
Features
|
■ Flexible light output, no glare, no blue light hazards, especially suitable for someone's working environment for a long time lighting;
■ Made of the light-transmitted cover is made of non-transparent tempered glass, which is resistant tohigh temperatureVery strong and alkaline resistance;
■ The Light Source uses Imported Chipsled, with high brightness, long life, low thermal resistance, low power consumption, energy saving of more than 60%year-on-year; drive circuit with constant current output, which has short circuit, opening protection function, and output brightness.Do not change with the change of voltage.
■ The shell is formed by high-voltage alloy, and the surface is high-tech anti-corrosion treatment technology. It has the characteristics of superiority, anti-fall, anti-collision, and corrosion of corrosion.
■ Can Be Equipped with a Built-In Emerger Module to make the product's use range more widely.8W/150min, lighting emergency or pure emergency.
■ Customized microwave intelligent sensing configuration.
|
Technical parameter
|
name
|

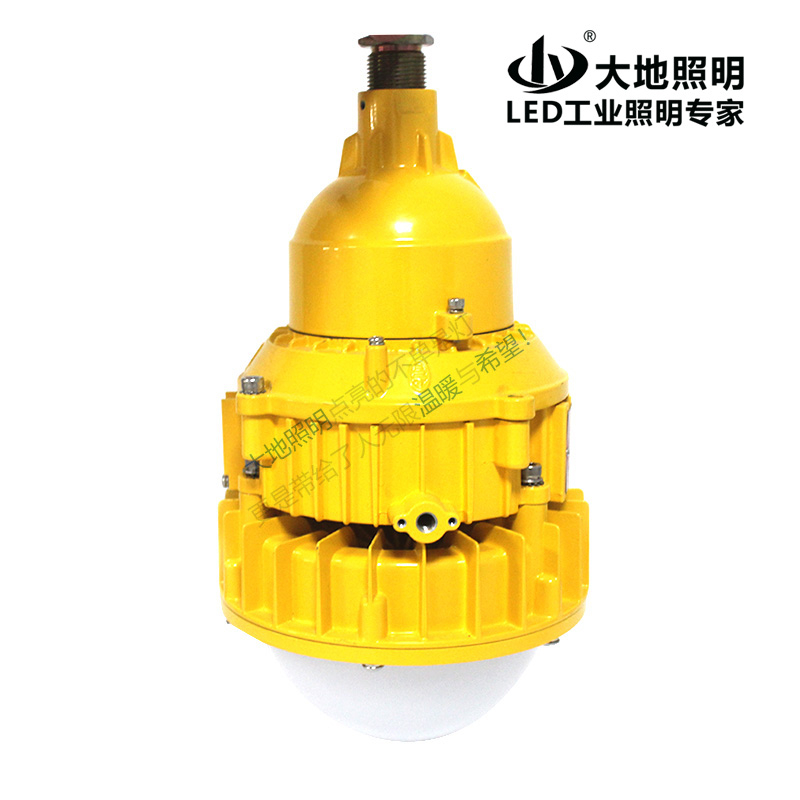

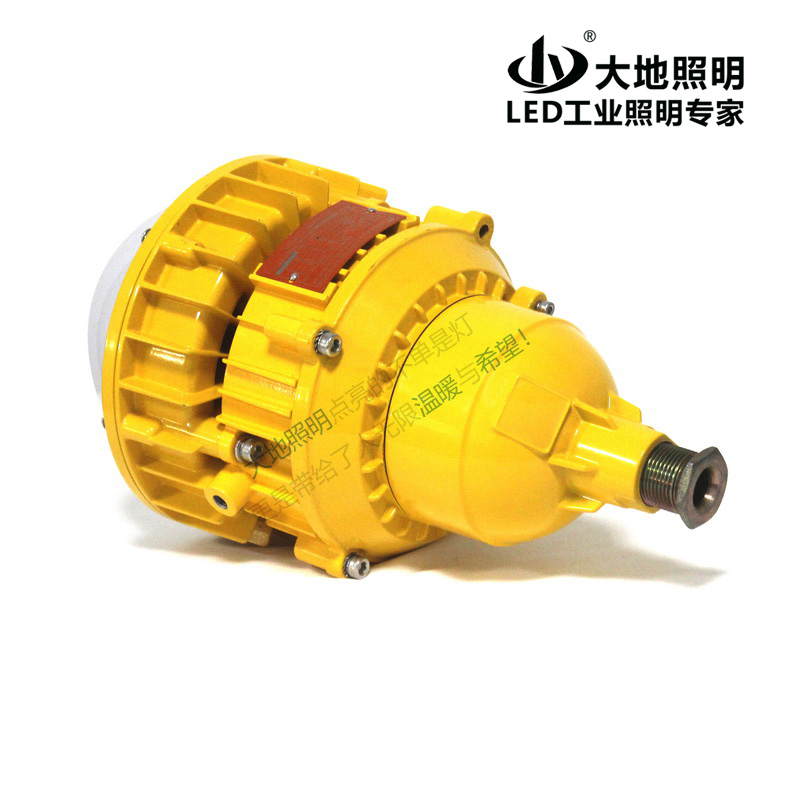

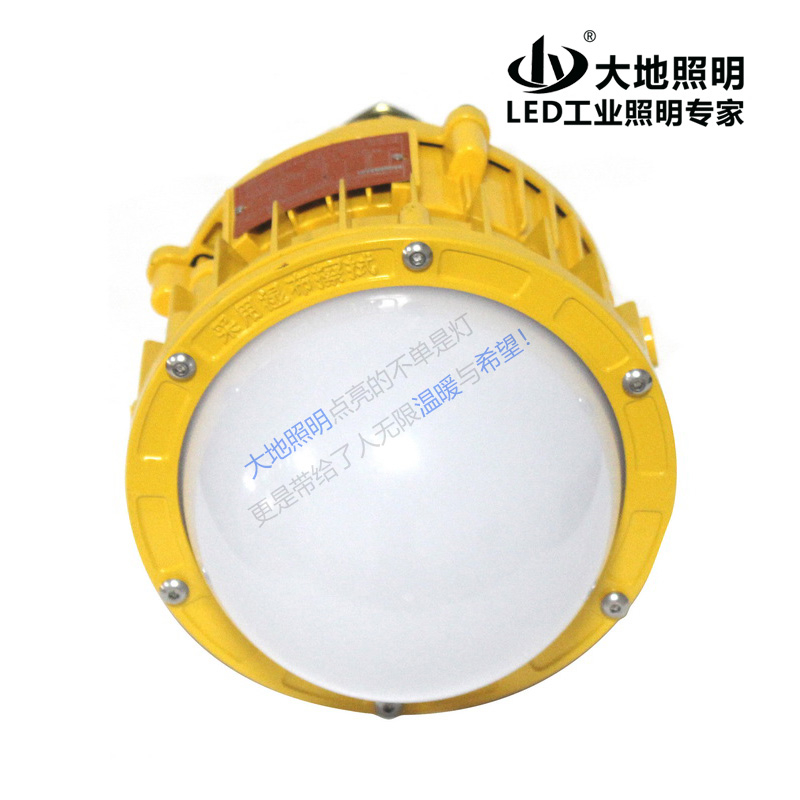

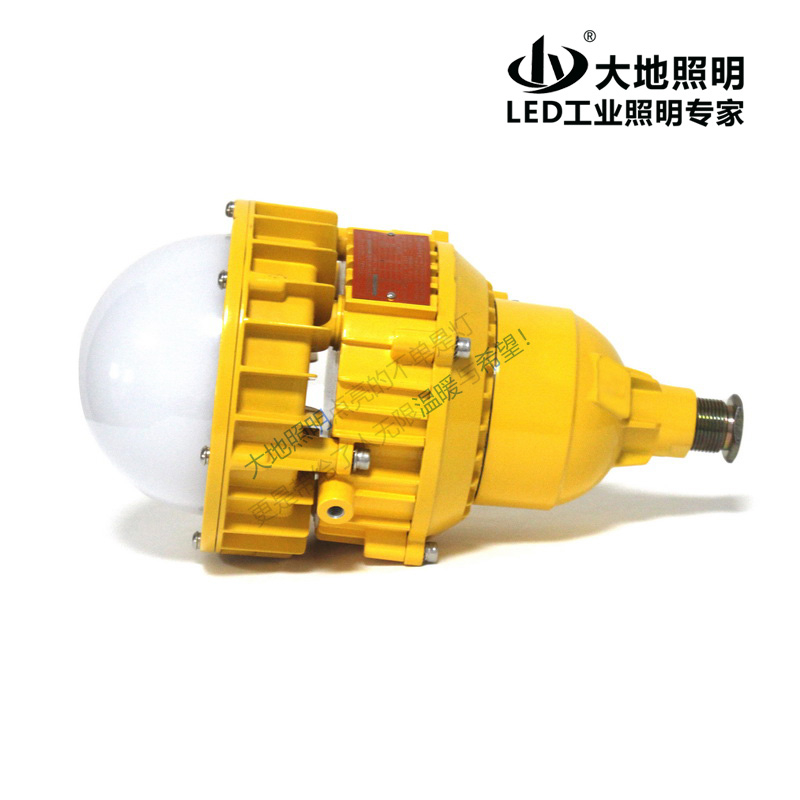

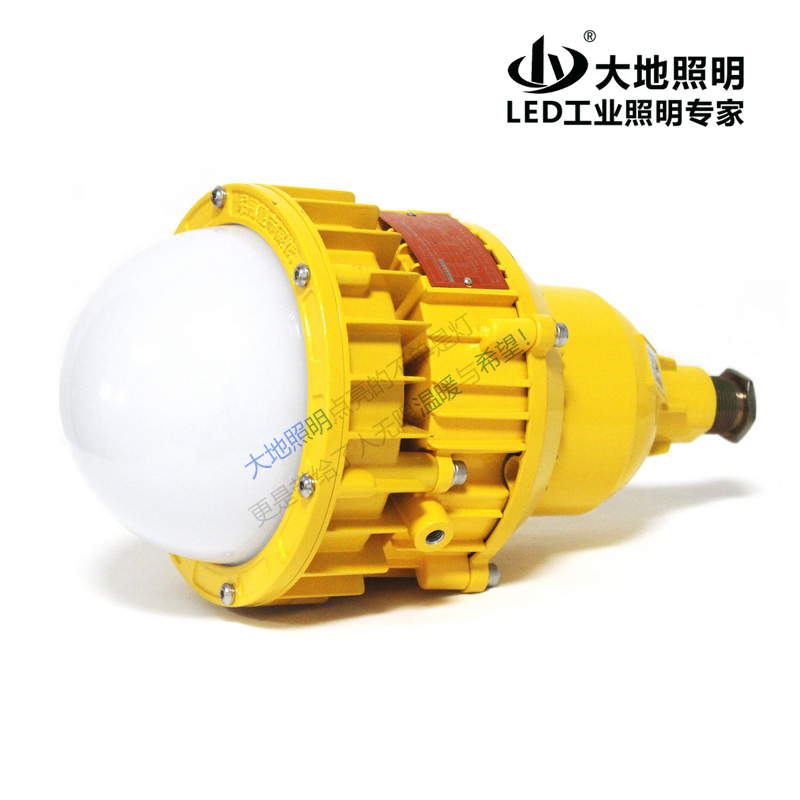

LED explosion-proof platform light
|
light source
|
LED
|
Rated power
|
30W、50W
|
Explosion-proof
|
Ex d IIC T6
|
Protection level
|
IP66
|
Anticorrosive grade
|
WF2
|
Ambient temperature
|
-20℃~+40℃
|
Life
|
100000h
|
Appearance
|
Φ170×318mm
|
weight
|
3.5KG
|
|
Light curve
|

|
Installation size
|

|
|
