Products

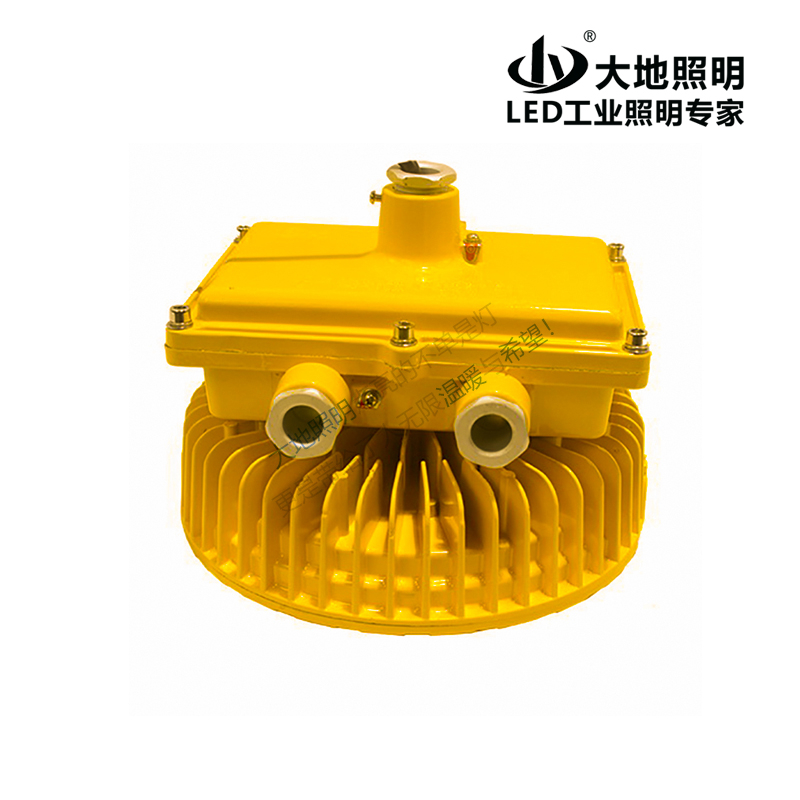

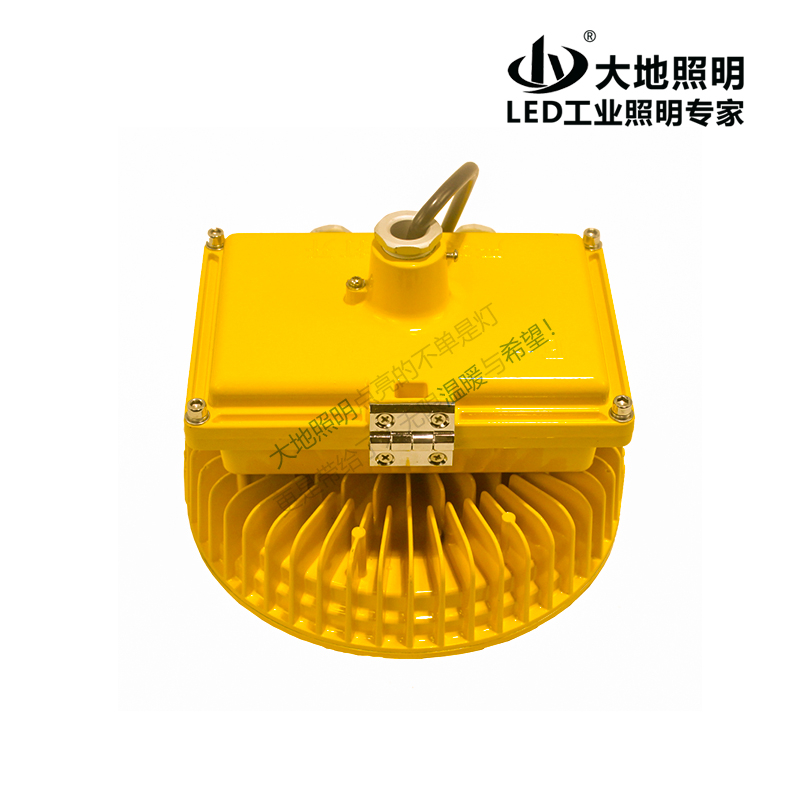

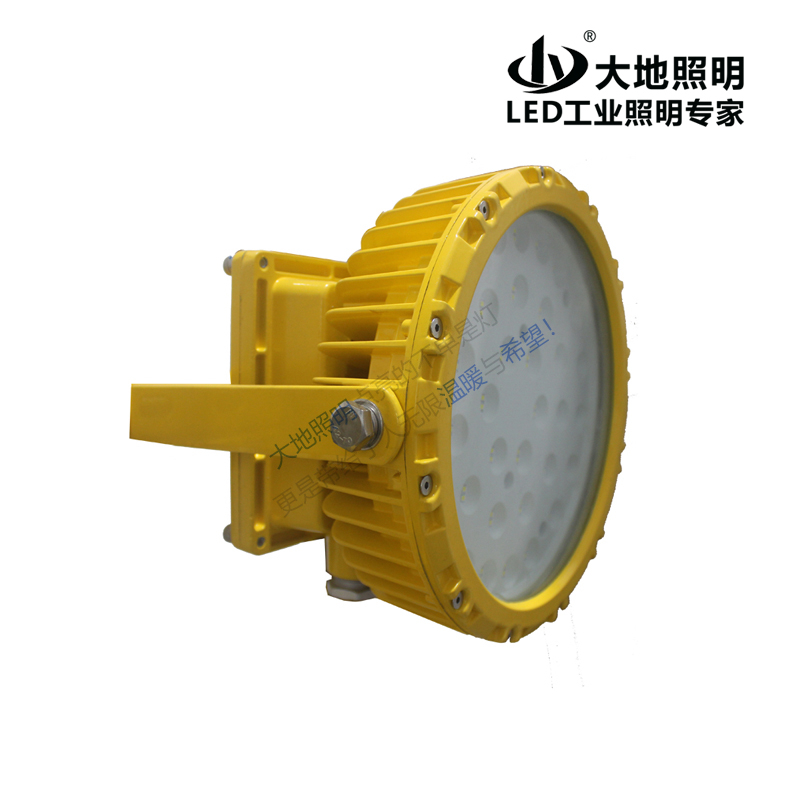

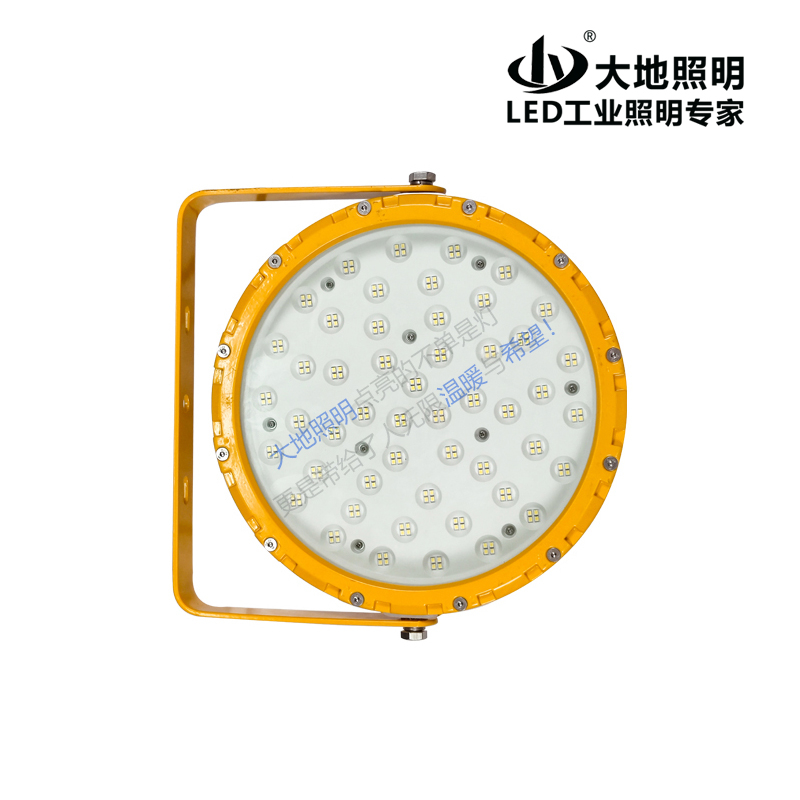

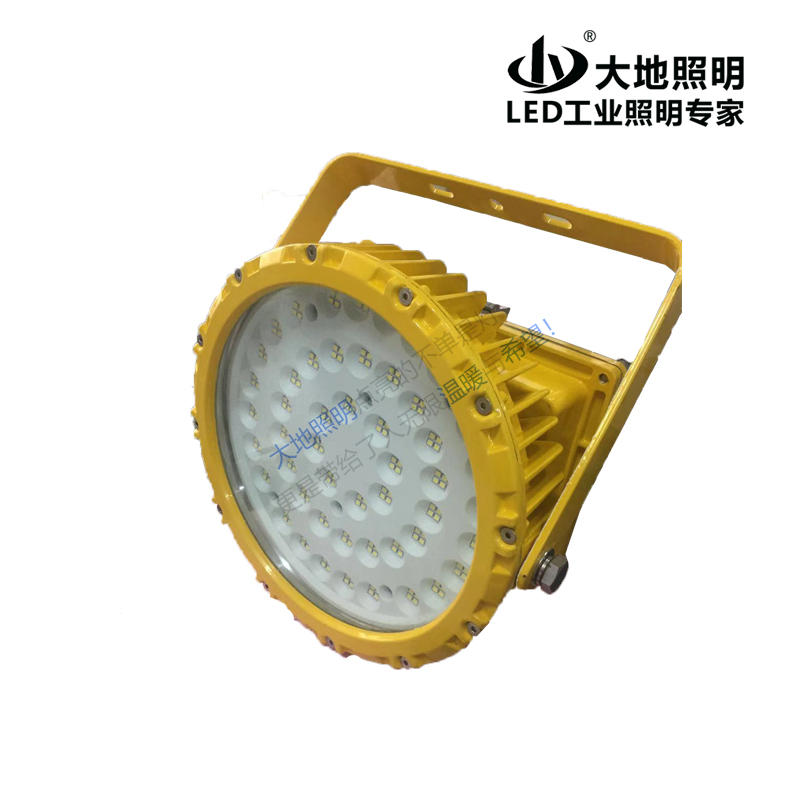

BFC8800-A LED explosion-proof lamp

The BFC8800-A LED explosion-proof light is suitable for flammable and explosive places and various indoor and outdoor lighting, construction site and installation and facility lighting.

Product Documentation

Scope

Dadi Lightingin Order to Meet the Needs of OF Oil, PetroChemical, Metallurgy, Railways, Power Plants, Ships and Other Flammable and Explosive Fields, DEVELOP And Develop and Producebfc8800-A LED explosion-proof light.It is suitable for flammable and explosive places and various indoor and outdoor lighting, construction site, installation, and facilities lighting.

Features

a) This product has passed the national authoritative agency explosion-proof certification, the highest explosion-type explosion-proof level is fully produced in accordance with national explosion-proof standards. It has excellent explosion-proof and anti-static effects. It can work safely at various flammable and explosive places.

b) This Light Reflector System UseS Double-Layer Lighting Technolog to Increase the Effective Luminous Light of Light Height Height, Whit is more. This the actual output of order product light.between light source and reflective deviceSprotl, Solidworks, Pro/E, and optics.The system cooperates with the design to make the entire configuration more accurate.

c) The shell is formed by high-Voltage AlLoy, and the outer Surface has sprayed Silver Gray or Sub-Light Yellow Plastic Powder. Eriority, Anti-Fall, Anti-Collision, and Corross of Corross.The use of a comprehensive way of flow enables the product to have a convective effect at any angle, which is effective to ensure the service life of the product.The driver box uses a three-way output joint and a reasonable internal space, so that the product can also add an emergency system while being used as a explosion-proof light to make the product's use range more widely.

d) According Toiso9000 requires that the company carefully formulates lamp production technology and product testing standards. The operating guidance of each station and patiently train to ensure that each employee has a bamboo.The reliability test of the lamp is up to 48 hours, from high pressure to low-voltage division tests.

Technical parameter

name name

LED explosion-proof pan

Light source

LED

Rated power

Standard70W (optional 50W 60W 100W)

Explosion-proof

Ex d II C T6

Input voltage

AC220V (optional AC/DC12-36V)

Protection level

IP67

Anticorrosive grade

WF2

Introduce cable

Φ8-Φ10mm

Ambient temperature

-20~+40

Life

100000h

Appearance

Φ245×210mm

Heavy quantity

5.2KG

Light curve

Installation size
