Products

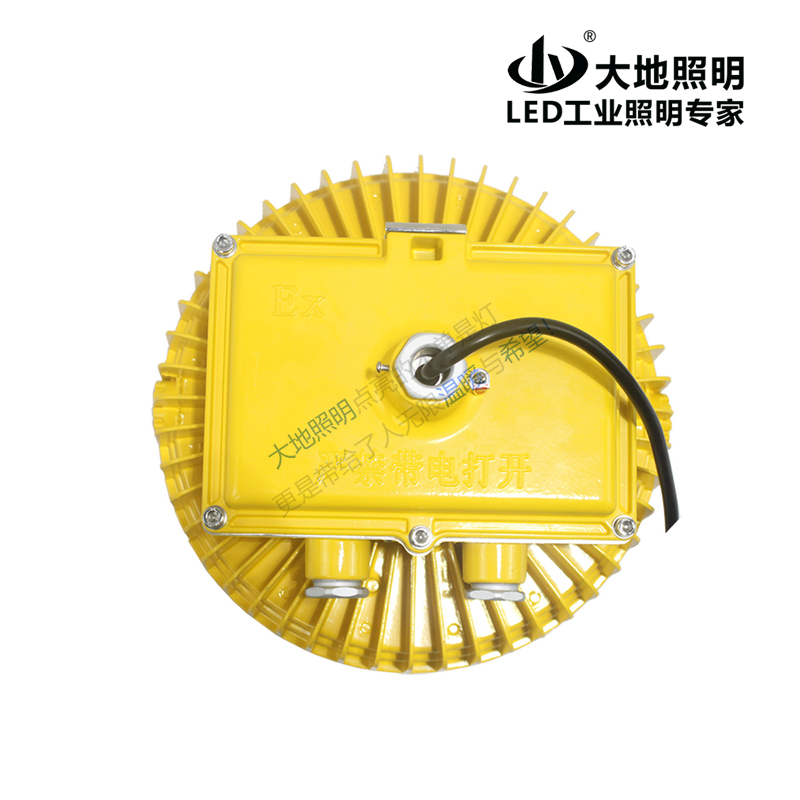

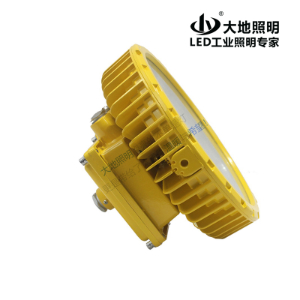

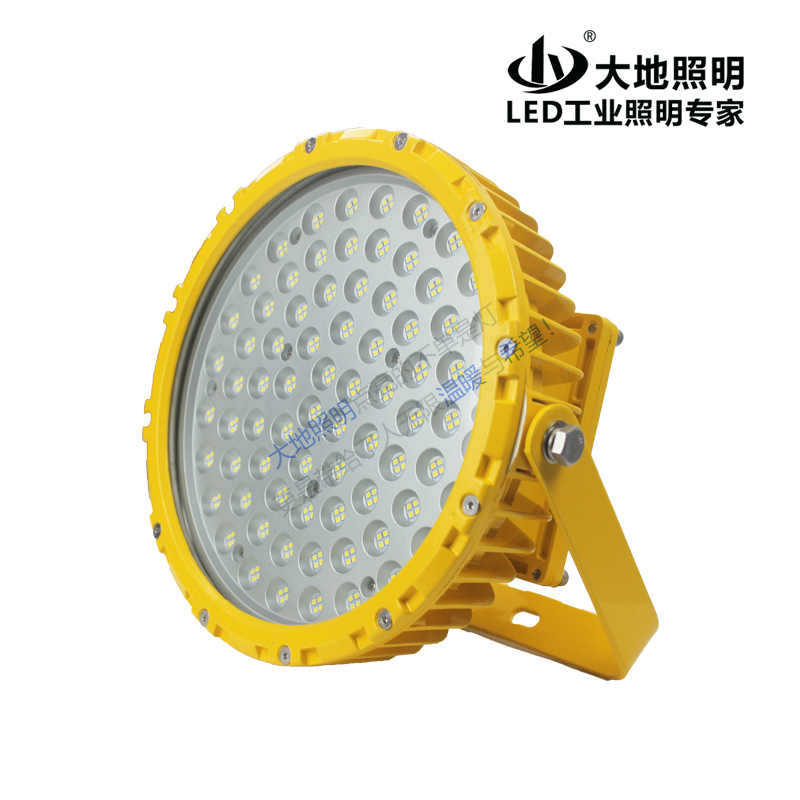

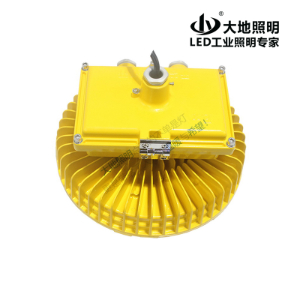

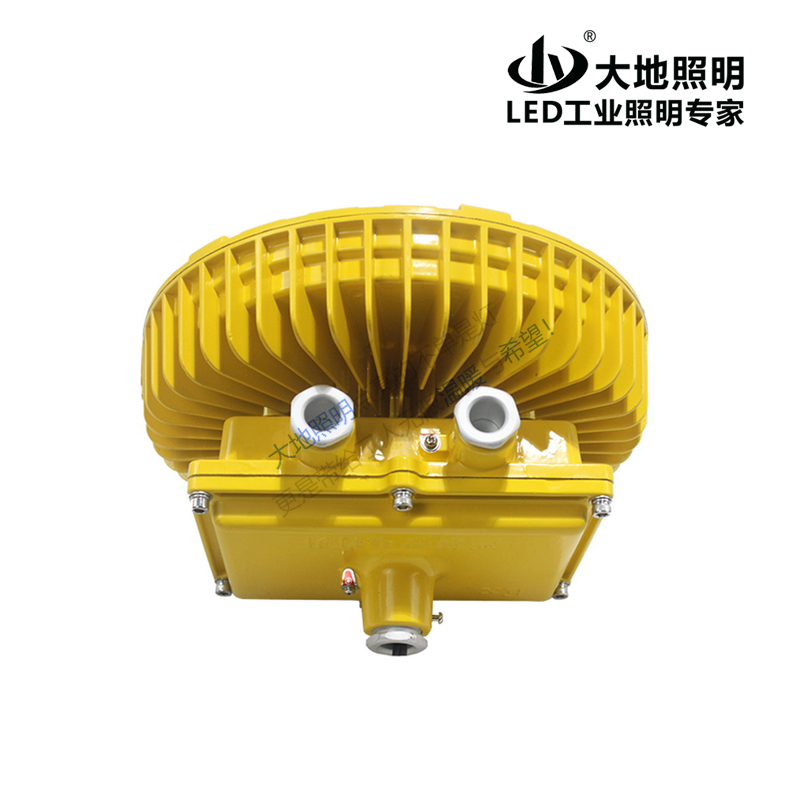

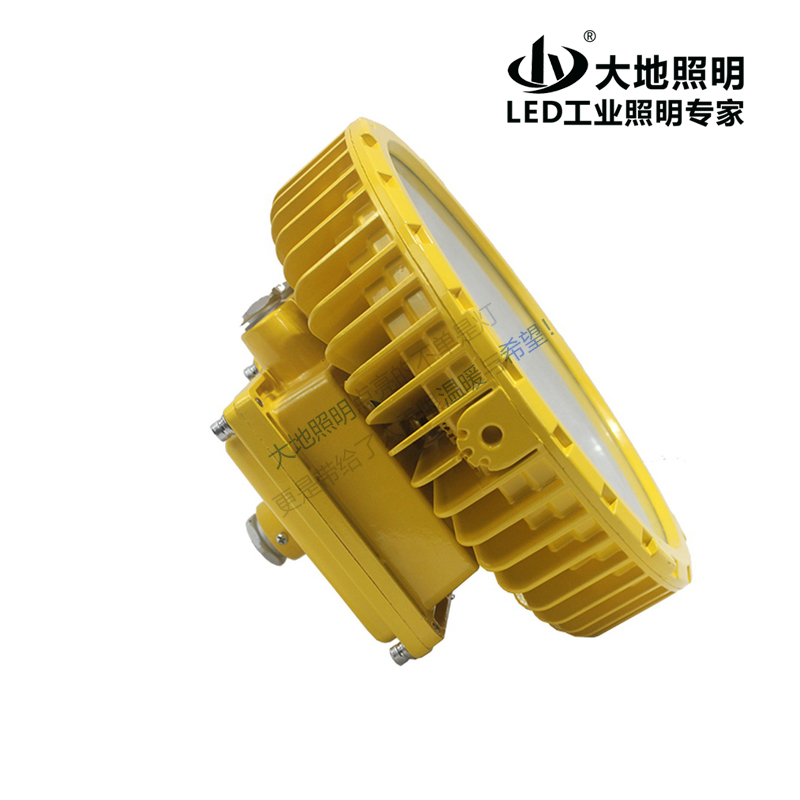

BFC8800-A LED explosion-proof lamp

The BFC8800-ALED explosion-proof light source is separated from the electrical cavity separation design, which effectively controls the temperature rise of each component and extends the service life of LEDs and drivers; the design of the heat dissipation system adopts a comprehensive flow of flow, so that the product has a convective effect at any angle, which is effective.Ensure the service life of the product.

Product Documentation

Scope

In Order to meet the needs of flagmable and vulnerable fileds such as petroleum, Petrochmical, Metallurgy, Metallurgy, Railway, POWER PLARANTS, and Ships It is deverted and devertedbfc8800-A LED explosion-proof light.It is suitable for flammable and explosive places and various indoor and outdoor lighting, construction site, installation, and facilities lighting.

Features

■ LED Explosion Light has passed the explosion-proof certification of national authoritative institutions, with the highest explosion-type explosion-proof level, has excellent explosion-proof and anti-static effects, and can work safely at various flammable and explosive fields.

To meet the waterproof requirements from the structural design, the product shell protection level meetsIP67。

■ The Lamp Shell Use Special Aloy Materials, Combined with High-TECH SPRAYING PROCESS, has the characteristics of superiority, anti-fall, anti-collision, corrosion corrosion, can be used reliable in various harsh environments.

■ Separation of the light source and electrical cavity, effectively control the temperature rise of each component, extend the service life of LED and drivers; the design of the heat dissipation system adopts a comprehensive flow of flow, so that the product has a convective effect at any angle, and effectively ensure the use of the product.life.

LED explosion-proof lamps are light weight, which can suck top, wall-mounted, boom-type, French bar and other installation methods.

Technical parameter

name name

LED explosion light

Light source

LED

Rated power

Standard100W (optional 120W 150W)

Explosion-proof

Ex d II C T6

Input voltage

AC220V (optional AC/DC12-36V)

Protection level

IP67

Anticorrosive grade

WF2

Introduce cable

Φ8-Φ10mm

Ambient temperature

-20~+40

Life

100000h

Appearance

Φ300×220mm

Heavy quantity

6.8KG


Light curve
Installation size
