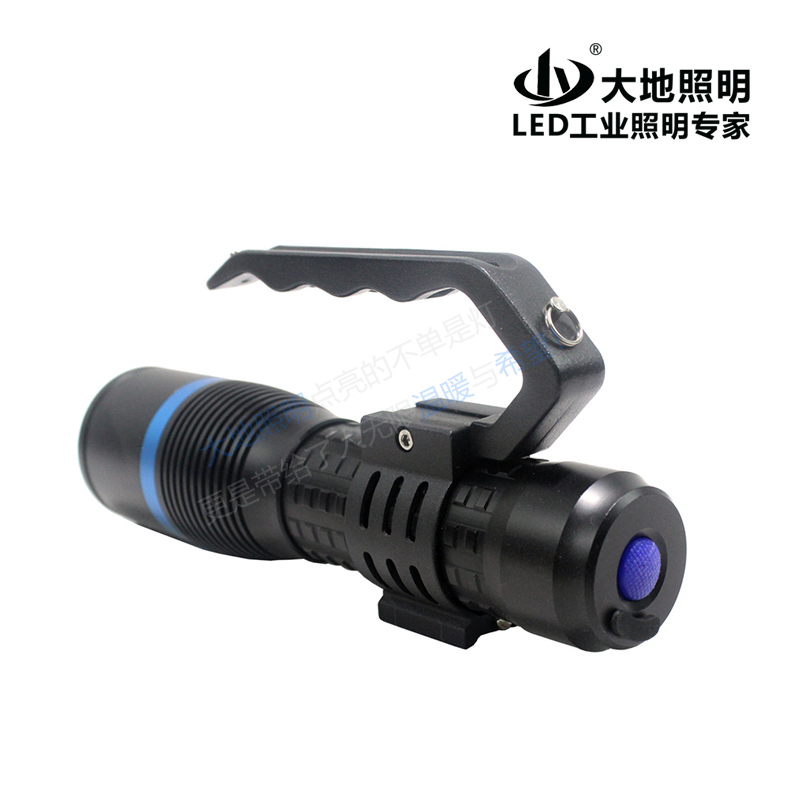

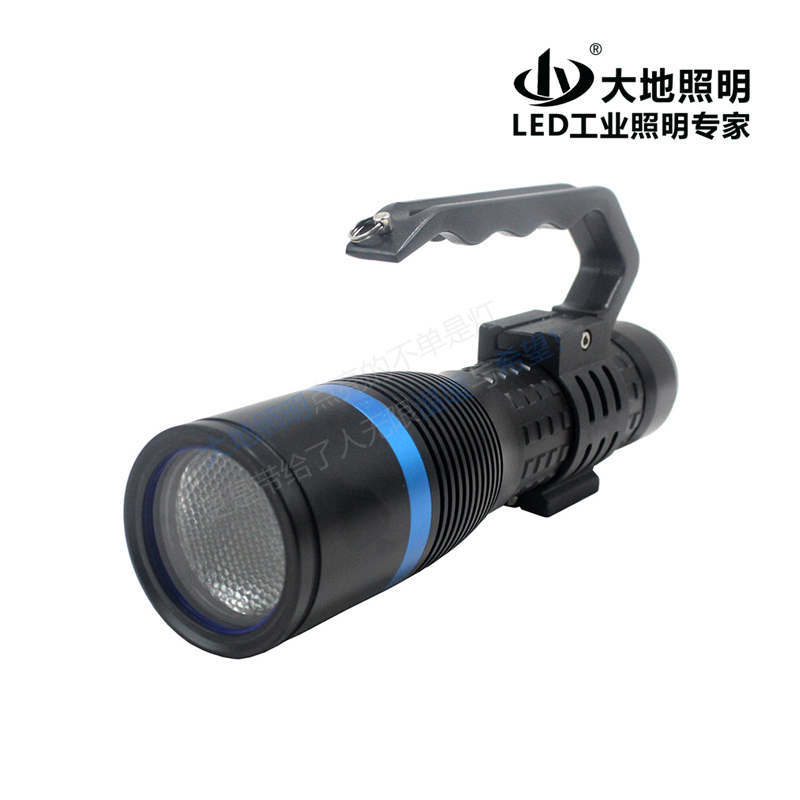

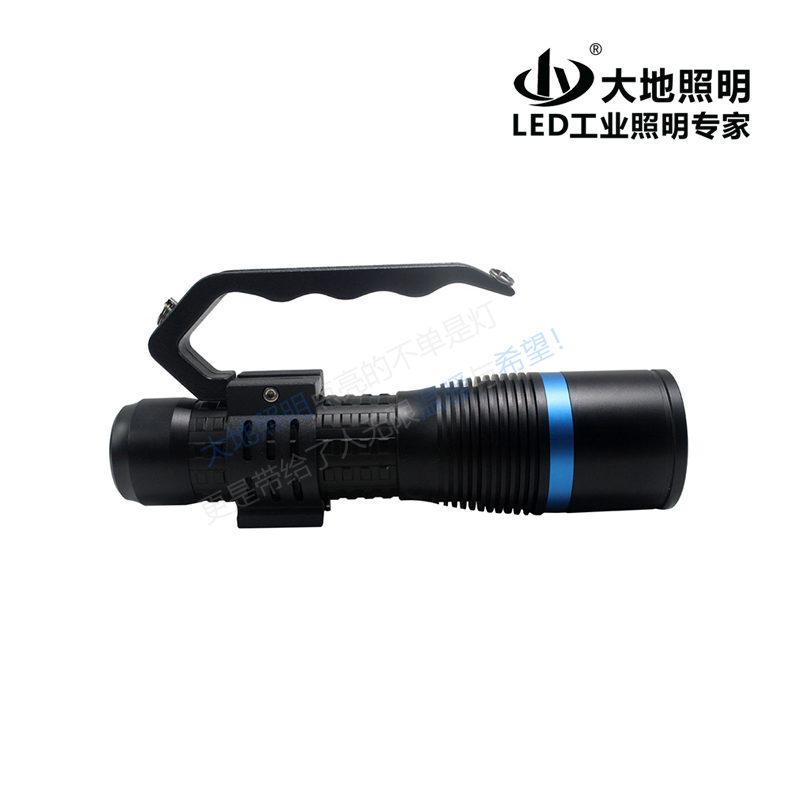

In accordance with market requirements, the company developed and developed BWJ6310B portable LED uniform light survey light sources, which is suitable for the investigation and photography of the public security system on the accident and the traces of the incident.
■ Adopt imported CREE LED light sources, with high optical effects and less energy consumption. The average service life is as long as 100,000 hours.
■ Use bionic compound eye technology for light design, and the uniformity of light is as high as 0.9 or more; the reflector cup is made of high-quality PC material injection, the reflective surface is treated with vacuum coating, scientific parabolic design, concentrated light optimization, high reflective efficiency, light spots, light spotsThe light color is uniform.
■ It has two working modes: search light and camera light. The two working modes can be switched at will.
■ The continuous working time is long, the search time for searching is not less than 4 hours, and the work time of camera light is not less than 10 hours.
■ Humanized low-power warning function. When the electricity is insufficient, the lamp will automatically flash reminder to charge.
■ Large space handle and big button design to meet the needs of carrying and operating lamps when wearing cotton gloves in winter.
■ The whole light uses high-strength aluminum alloy shells to resist corrosion, falling, and impact resistance; shell protection level IP65, which meets the needs used under harsh environmental conditions.
■ Beautiful appearance, simple operation, easy to carry, can be handheld, hand-carrying and shoulder carrying.
■ The unique support foot design at the tail ensures that the light is irradiated from the side of the trace, and the three-dimensional sense is stronger.At the same time, the lamp can prevent the lamps from scrolling at the horizontal plane, liberate the hands, and achieve single-person operation when taking pictures.
■ Using high-energy lithium-ion batteries, the internal protection circuit of the battery has the function of preventing overcharge, over-loading and short-circuit protection, dual protection technology, safe and reliable, and excellent performance.
■ A multi-band light source can be formed by increasing the filter to achieve a multi-energy (hardcover configuration).Red filter (620nm-780nm), blue filter (445nm-480nm), purple filter (380nm-445nm), green filter (480NM-575NM), orange filter (590Nm-620Nm)Essence
parameter
name
Make a light source
LED
Light source
12W
Rated voltage
DC7.4V
Rated capacity
6600mAh
Working hours
Search light≥4h camera light ≥10H
Optical flux
Search light650Lm Take a picture350Lm
Charging time
≤6h
Battery life
≥1000 cycles
Use environment
-30℃~60℃
Protection level
IP66
Appearance
82×304mm
Heavy quantity
1.4Kg
Other functions
Power indicator
Scope
Features
Technical parameter
