Scope
|
1.1 Area and 2 of the explosive gas environment dangerous places
2.IIA, ⅡB, Ⅱc T1 ~ T4/T5/T6 set of explosive gas environments;
Zone 3.20 area, area 21, and district 22 are combustible dust gas environment places;
4.It is applied to petroleum, chemical, medicine, sky gas, aerospace explosive gas environment and marine petroleum platforms, tankers and other places.
|
Features
|
■ The shell adopts the shell as an increased structure, and the glass fiber is used to enhance the unsaturated polyester resin. (SMC). The appearance is beautiful, with corrosion resistance, impact resistance.Structure, ensure high protection level or ZL102 aluminum alloy die-casting, surface high-voltage static electric spray plastic, stainless steel exposed fastener;
■ With waterproof, dustproof, anticorrosive and other performance;
■ button, switch, indicator light, current meter and other multi-function, the user is freely selected;
■ Interior explosion-proof elements introduce technology production, beautiful and exquisite, durable;
■ Vice or hanging installation, if there are special requirements, it can be made;

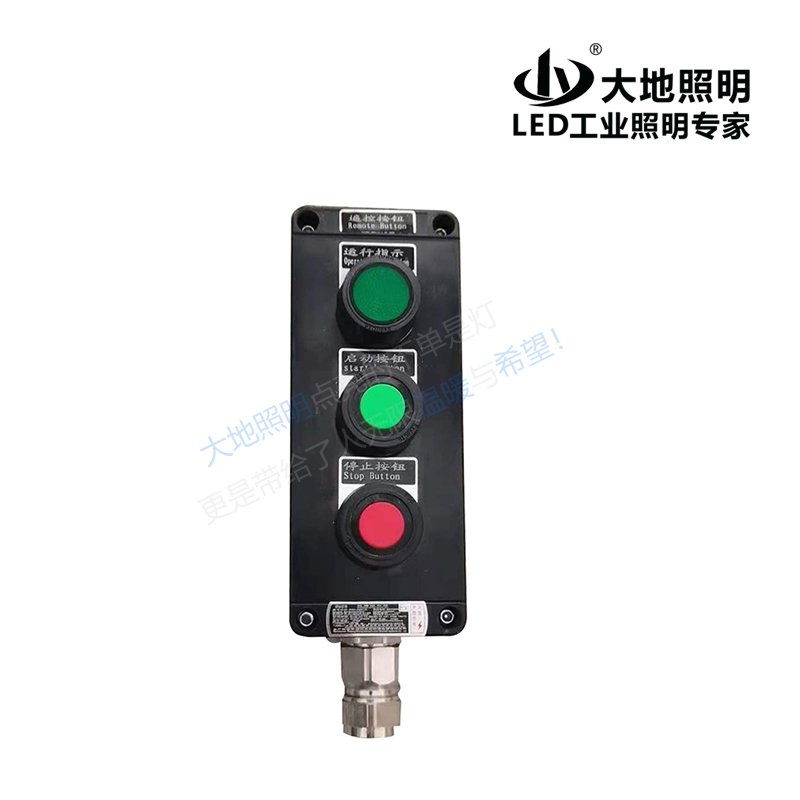

■ Compliance with GB3836-2000, IEC60079 standard requirementsIt is a modular, multi-combined, multi-purpose non-standard product (explosion-proof anticorrosive emergency stop button). If you need to make a custom, please communicate with the sales staff of our company.
|
Technical parameter
|
1. Explosion-proof signs: EXED IIC6
2. Protection level: IP65
3. Anticorrosion level: WF2,
4. Use category: AC-3, AC-4
5. Rated voltage: 220V/380V,
6. Rating current: 10A,
7. Cable outer diameter: φ12mm ~ φ17mm,
8. Entry port thread: G1 "
9. The voltage number of the indicator light: A: AC/DC12-36V, B: AC/DC48-100V, C: DC220V, D: AC200-380V
10. The color code of the indicator light: R: red, g: green, y: yellow, W: white
11 button contact type type number: Ⅰ: one frequency and one normal closed Ⅱ: two constant open Ⅲ: two constant closure
|
|
