Products

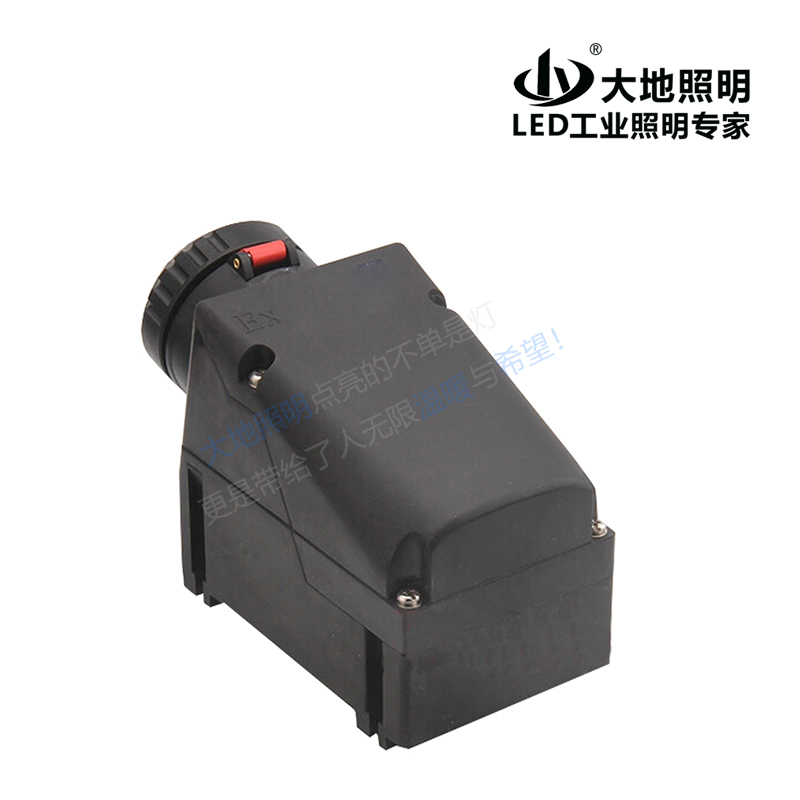

Explosion-proof anticorrosive interpolation

Product Documentation

Scope

1.1 Area and 2 of the explosive gas environment dangerous places

2.IIA, ⅡB, Ⅱc T1 ~ T4/T5/T6 set of explosive gas environments;

Zone 3.20 area, area 21, and district 22 are combustible dust gas environment places;

4.The altitude does not exceed 2000m;

At 5.25 ° C, the relative humidity is below 95 %;

6.The working environment temperature-20 ℃ ~+40 ℃;

7.It is applied to petroleum, chemical, medicine, sky gas, aerospace explosive gas environment and marine petroleum platforms, tankers and other places.

Features

■ This product's shell is suppressed by high-intensity flame retardant engineering plastic. It has beautiful appearance and excellent performance of anti-static impact resistance, good stability, and corrosion resistance;

■ It has an interlocking structure, and the plug can only be pulled out after the switch inside the socket is disconnected; ■ The socket is equipped with a padlock, which can be used to lock the socket cover when not in use, making it difficult to open and facilitating on-site monitoring; ■ Both steel pipes and cables can be used for wiring; ■ Meets the requirements of GB3836-2010 and IEC60079 standards.

Technical parameter


model

Rated voltage(v

Rated current(A)

Extreme

Explosion-proof

Entry screw

Outer diameter

Protection level

Anticorrosive grade

BCZ8050-16

220V,380V

16

1P+N+PE+3P+N

Ex ed IIC T6 Gb

3/4

9-14

IP65

WF2

BCZ8050-32

32

1

11-18

BCZ8050-63

63

1 1/2

17-28
