Scope
|
|

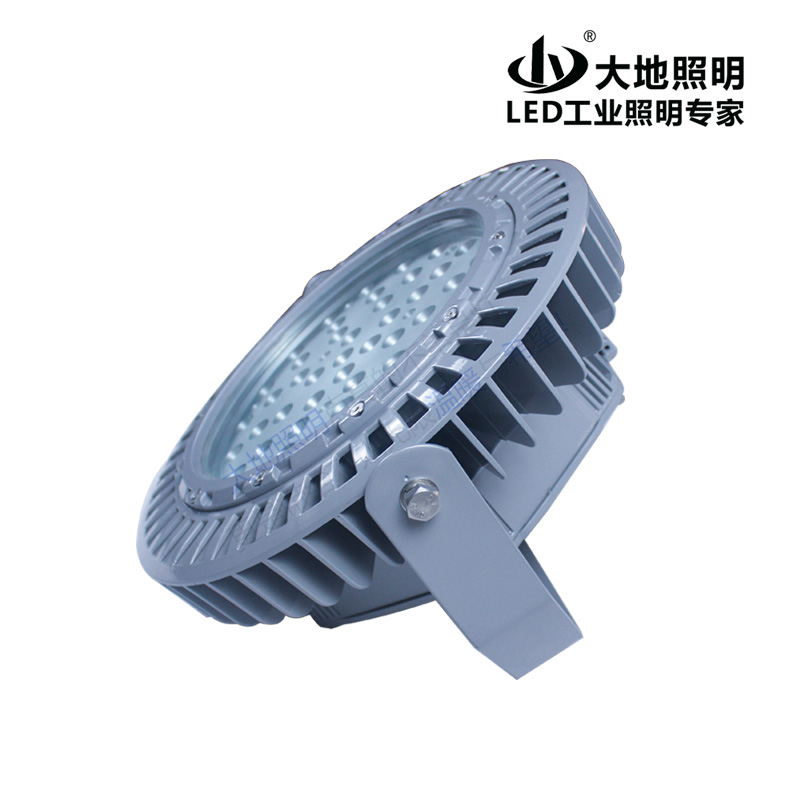

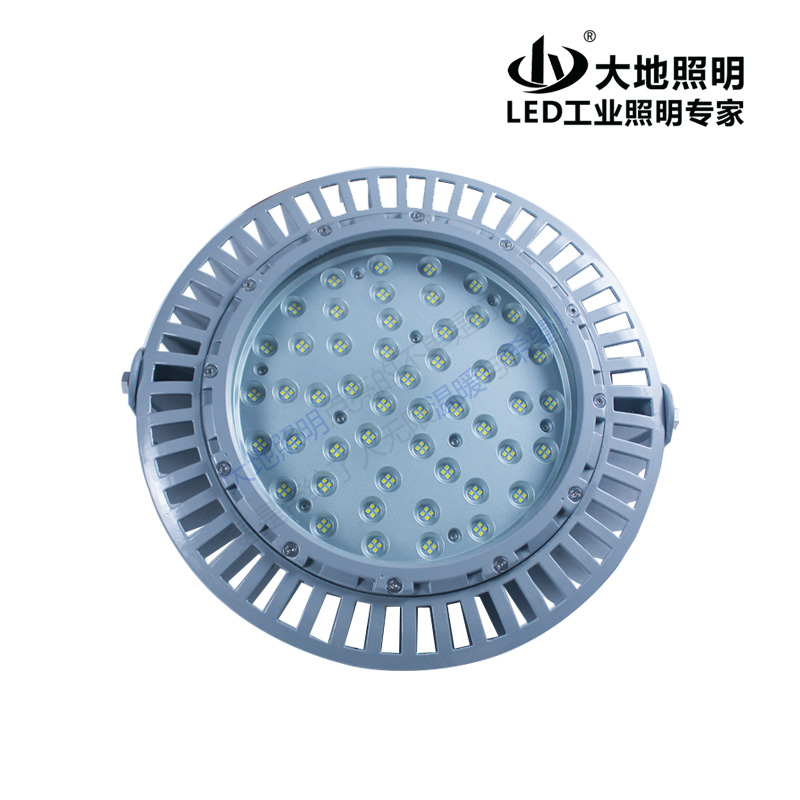

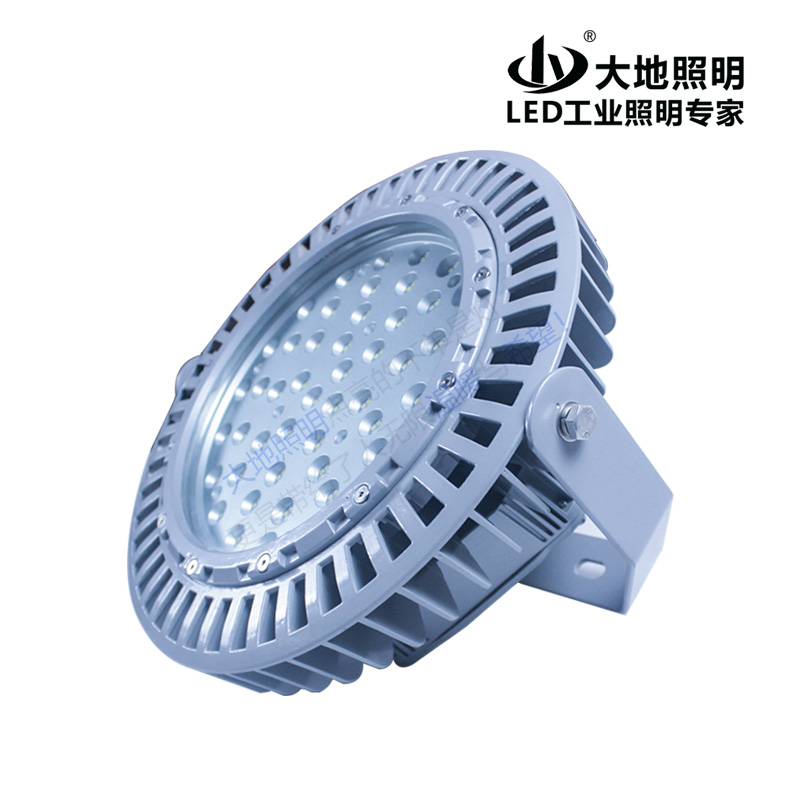

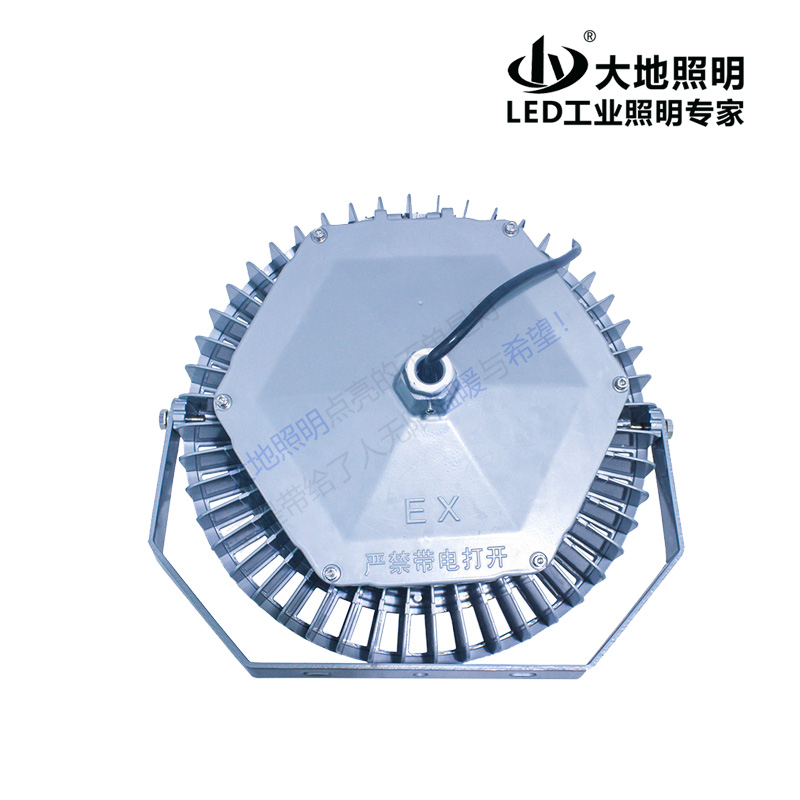

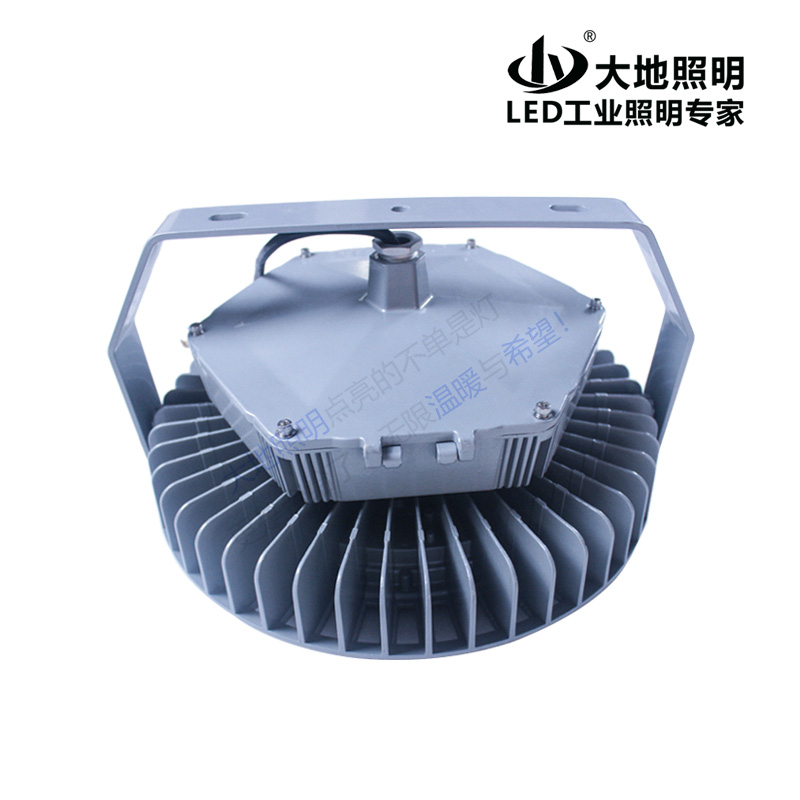

In order to meet metallurgical, railways,tunnel,The needs of flammable and explosive fields such as power plants and ships, and develop and produceNFC9280LEDGlowlamp.Widely applicable to various factory areas, workshops, stations, large facilities and equipment areas to do fixed lighting。
|
|
Features
■Adopt international brandsLED light source，High emotional efficiency, high life spanMore than 50,000 hours.
■LED pan-light festivalCan be low-consumption, consumption is only the same light flux incandescent lamp20%。
■The light is soft, no glare, and it will not cause the fatigue of the operators' eyes and improve work efficiency;
■The shell is made of light alloy material, and high-tech spraying treatment is performed, wear resistance, anti-corruption, waterproof and dust-proof;
■The transparent parts adopt temperament of tensile highbbao silicon glass, with high light transmission and good impact resistance, which can make the lamps work properly in various harsh environments;
■The LED pan-light light has a variety of installation methods such as top-absorbing, wall-mounted, and boom-type to meet the lighting needs of different on-site environments.
Technical Parameter
|
|
|
name say
|
LED pan-light light
|
|
Light source
|
LED
|
|
Rated power
|
Standard200W (optional 240W, 300W)
|
|
Input voltage
|
AC220V (optional AC/DC12-36V)
|
|
Protection level
|
IP67
|
|
Anticorrosive grade
|
WF2
|
|
Introduce cable
|
Φ8-Φ10mm
|
|
Ambient temperature
|
-20℃~+40℃
|
|
Life
|
100000h
|
|
Appearance
|
Φ420×200mm
|
|
Heavy quantity
|
9.7KG
|
|
|
Light curve
|
|
|
Installation size
|
|
|
