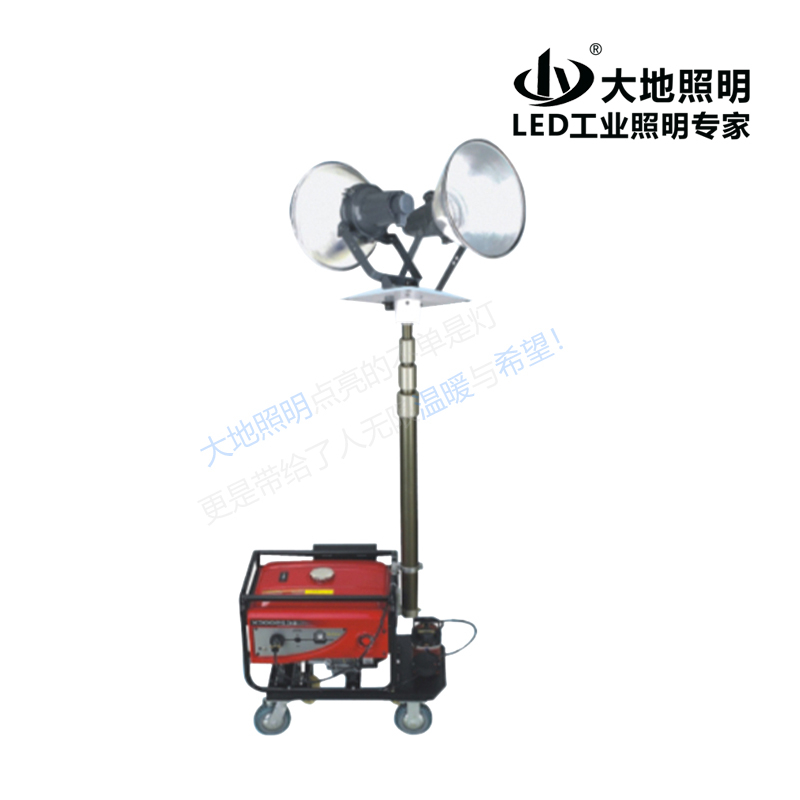

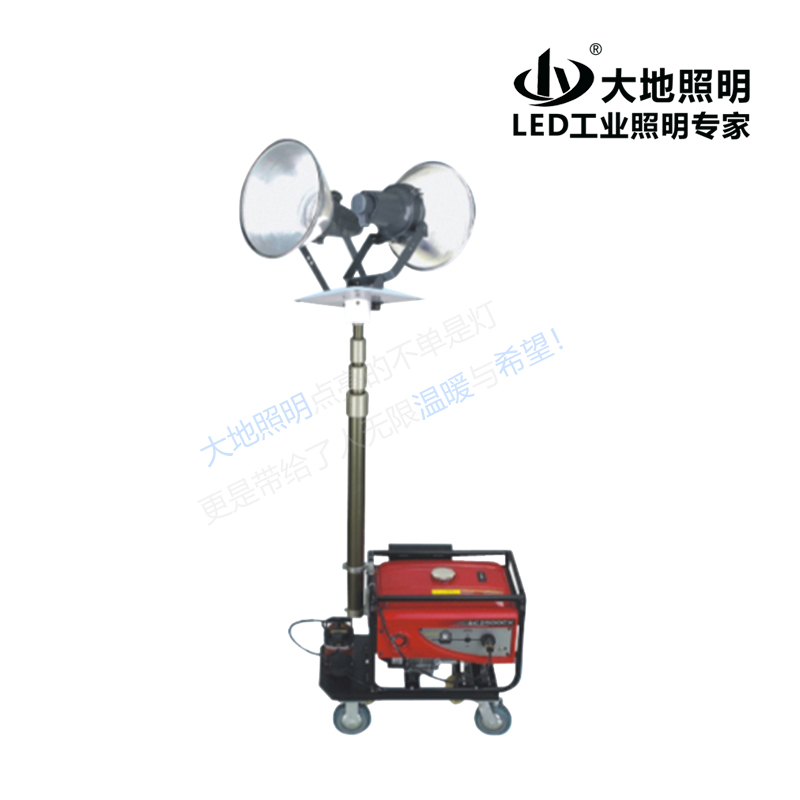

SFW7000C full-scale pan-light work light

The lamp panel consists of two 400W metal halide lamp heads or high-pressure sodium lamp heads. Each lamp head can be individually adjusted and rotated up, down, left, and right to achieve 360 ° all-round lighting according to on-site needs; The lamp panel, air rod, and generator set are integrated structures, and the bottom of the generator set is equipped with universal wheels and rail wheels, which can run on uneven roads and rails.

Product Documentation

Scope

The company developed and produced and producedSFW7000C full-scale pan-light work lights, in order to meet the needs of large-scale high-brightness lighting at high-area high-brightness lighting at the work site such as railway, power, public security, accidental repair, rescue and disaster relief.

Features

■ Light head function: The lamp plate consists of two 400W golden halogen lamp heads or high-pressure sodium lamp heads. You can adjust each lamp head alone, and adjust the rotation of 360 ° in all directions according to the need.Or two different directions; the overall lighting is far away, the range is large, the brightness is high, and the light bulb has a long life.

■ Rap the range: The 3-section-defensive cylinder is used as a lifting adjustment method. The electric air pump can quickly control the lift of the cylinder, with a maximum rising height of 4.5 meters; the upper and lower rotating lights can adjust the beam radiation angle, and the lighting radius of the light reaches 100 ~ 150m.

Lighting time: Power supply can be used directly, or 220V's long-term lighting can be connected to 220V; the power supply of the generator set can be fully fuel and the continuous working time can reach 13 hours.

■ Easy to operate: The lamp panel, air rod, and generator set are integrated structures, and the bottom of the generator set is equipped with universal wheels and rail wheels, which can run on bumpy roads and rails.

■ Adaptation place: The overall use of high-quality imported metal materials has a compact structure and stable performance to ensure normal work under various harsh environments and climatic conditions. The rating, water spray, and wind resistance levels are 8 levels.

■ Customized for you: To meet the personalized needs of users, if the standard configuration of this product cannot meet the work needs of users, our company can adjust the number of lamp heads, power, floodlight or spotlight, telescopic cylinder lifting height, and generator configuration according to user requirements.

Technical parameter

Parameter name

unit

Value

Rated voltage

V

AC220

Lantern

Working voltage

V

220

Lamp head

W

2×400

Light head light flux

lm

Golden halide lamp2×36000

High-voltage lamp2×48000

Average life life

h

Golden halide lamp10000

High-voltage lamp18000

Continuous working time

Municipal power supply

h

For a long time

The generator crew is full of fuel at a time

13

Telescopic gas rod

Minimum height

m

1.8

Maximum rising height

4.5

Lift time

S

30

Generator unit

Rating output voltage

V

220

Rating output power/Fuel tank rated capacity

W/L

2000/15

Appearance

Rectification×Width×high

mm

1350×500×800

The head of the generator×Width×high



460×323×480

weight

Lantern

kg

17.5

Telescopic cylinder/Generator set

6.5/45
