Scope of application:
In order to meet the needs of railway, oil fields, steel, electricity industry, public security, petrochemical and other enterprises in various operations, accidental repair, and abnormal conditions, the needs of high brightness and large-scale mobile lighting lamps are developedFW7020B mobile multifunctional lighting device, which is widely applicable to various cases, public security, fire, water conservancy, electricity, power, traffic accident survey and rescue site, accident handling site, highway inspection card point, and other emergency rescue disaster relief and other emergency rescue disaster relief.The rescue site is large-scale mobile lighting; it is suitable for mobile lighting at various working sites such as power repair, power construction, maintenance, etc.。

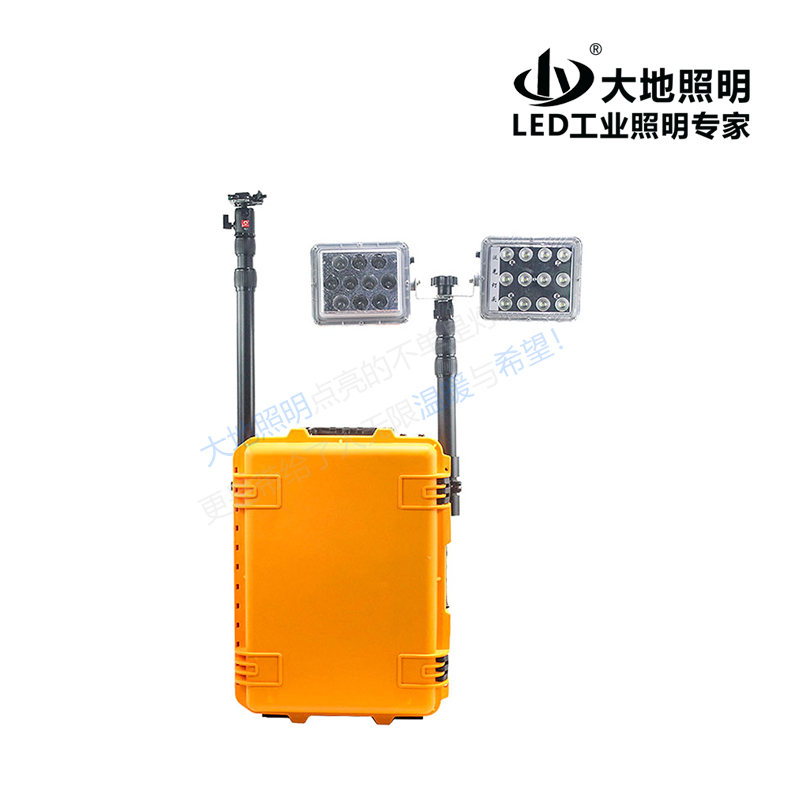

Structural characteristics:
■ Light head components are lighting from light, pan-light, ultra-strong light, and red and blue police, which can meet the lighting needs of different places;
■ There are multiple lights on the lamp head, high brightness, and long service life; high-light LED light source, the light flux is greater than 4000lm, the lighting is high, the coverage range is large, the central illumination of 6 meters is greater than 1000lux, and the average illumination of 3 meters is greater than 200lux;
■ Each lamp head of the lift work light can rotate 360 ??° in the horizontal direction with a lifting rod as the axis, and can make 90 ° vertical flipping in the vertical direction.
■ The lamp head can be folded and used for exploration light; after disassembly, put it into the box, easy to disassemble, and the operation is simple.
■ Special lift rod, high hardness, light quality, and corrosion resistance; buffer design inside the lift rod. It is safer when the lamp head is reduced, and it is safer to use.
■ Adopt a telescopic rod as a lamp head lifting adjustment method. You can manually lift the lamp head according to the needs of lighting. The maximum rising height is 1.2 meters for fixed lighting.
■ The lamps are powered by digital frequency conversion generators, high fuel efficiency, low noise, and pollution without pollution; the boxes with high-strength multi-layer materials with the box are ultra-mute design. They have high bearing capabilities, and they are more reliable to move and use.
■ Lighting performance of the lamps, good waterproof performance, and resistance to strong shocks; good vibration resistance can be used in a strong vibration environment.
■ The lock structure of the lock box of the lift work light is opened to save effort. At the same time, the lock has a self-locking function to prevent accidental bounces on the movement process.
■ Full lampLess than6kg, easy to carry long distance;Using multifunctional box design, you can carry it with the vehicle and use it on the spot; you can handle, shoulders, and easy to carry; you can also pull it on the ground to easily move from one site to another.
Technical parameter:
Lamp head |
Pan-light light head |
achievement Rate |
45W |
Rated voltage |
12V |
Light Pass quantity |
3000lm ((concentrated)) 5400lm (pan-light) |
Battery rated capacity |
24Ah |
||
Average life life |
100000h |
Continuous discharge time |
Strong light ≥3.5h/ Working light ≥11H/ Pan-optical ≥7.5h |
||
Concentric lamp head |
Rated power |
25W |
Battery charging time |
≤16h |
|
Light Pass quantity |
3000LM |
Appearance |
465×290×575mm |
||
Average life life |
100000h |
Heavy quantity |
25kg |
||
Warning lamp |
Flicker frequency |
4Hz |
|
Quality assurance:
Thank You for BuyingDadi LightingPropsCTBFW7020A Multifunctional Lift Working Light. Our company has passed the ISO9001 quality management system, ISO14001 environmental management system, and OHSOS18001 occupational health and safety management system review and certification.Strictly implement product production and service in accordance with system standards.The product is implemented for 3 years. Within 3 years, any failure occurs under the normal use of the product.
