Products

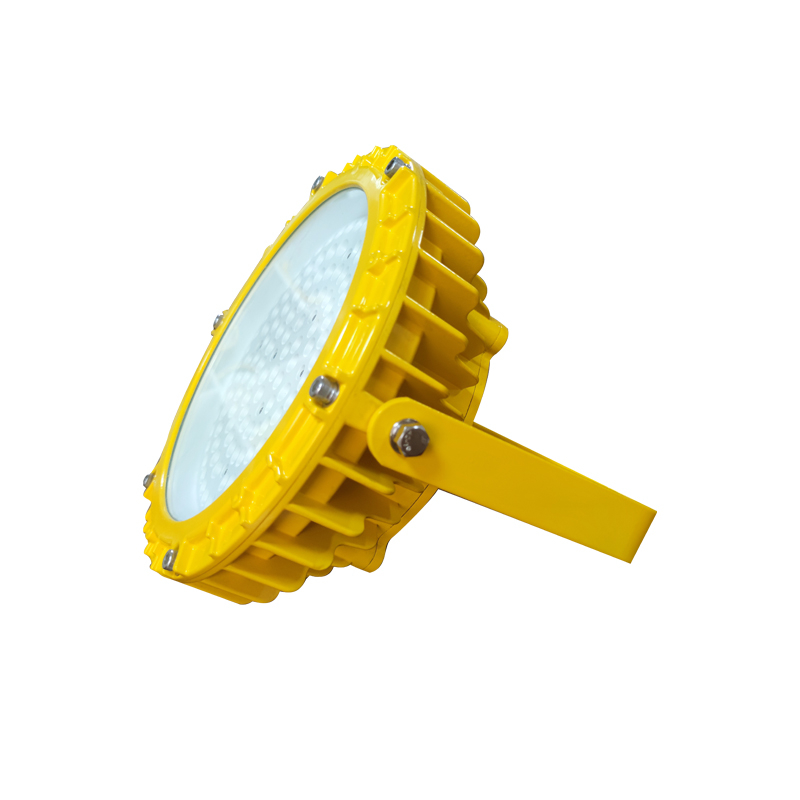

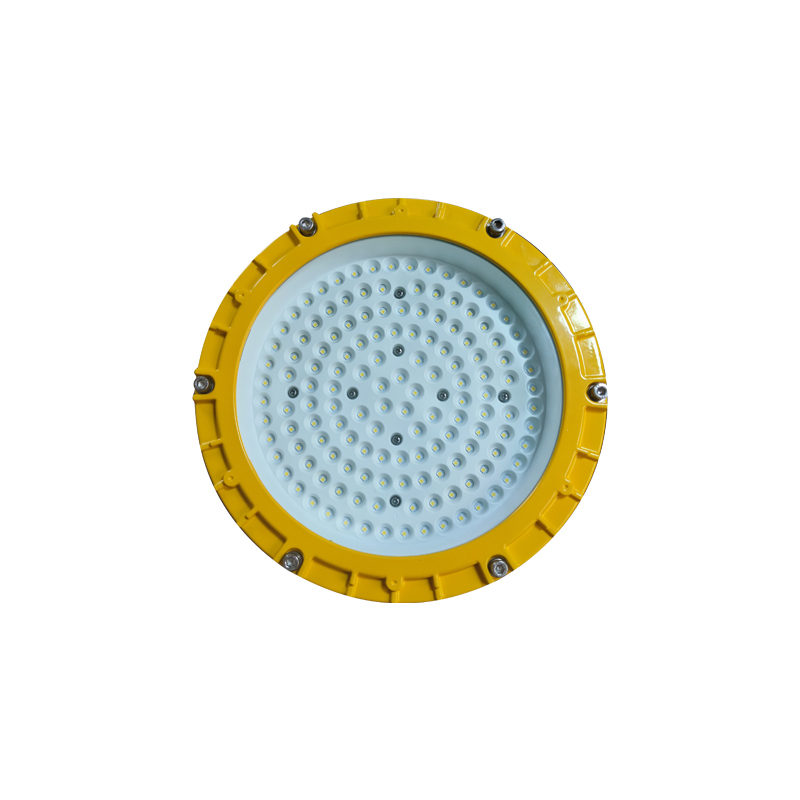

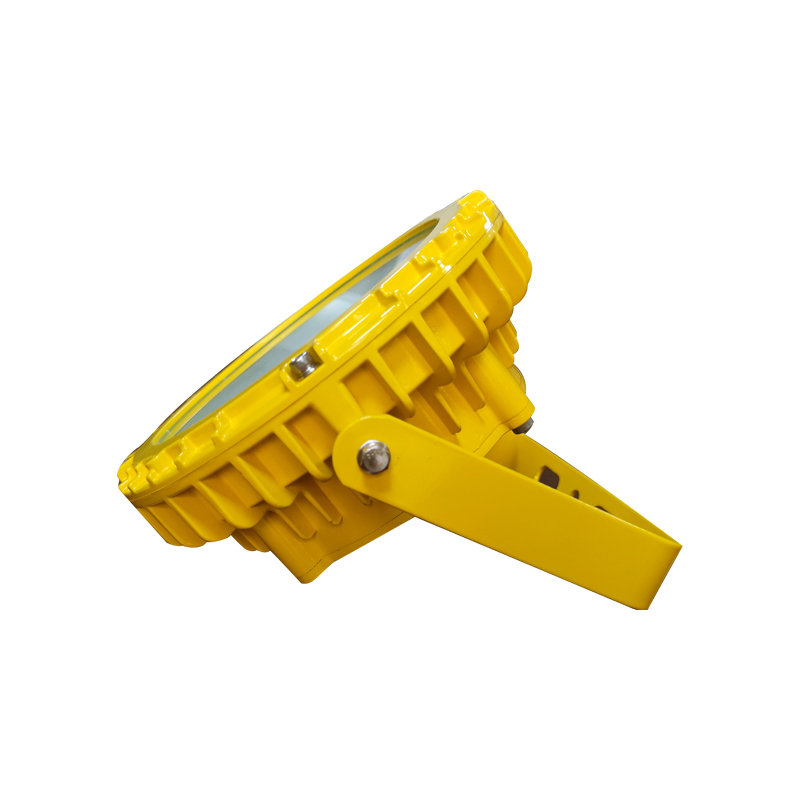

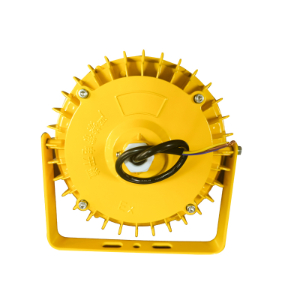

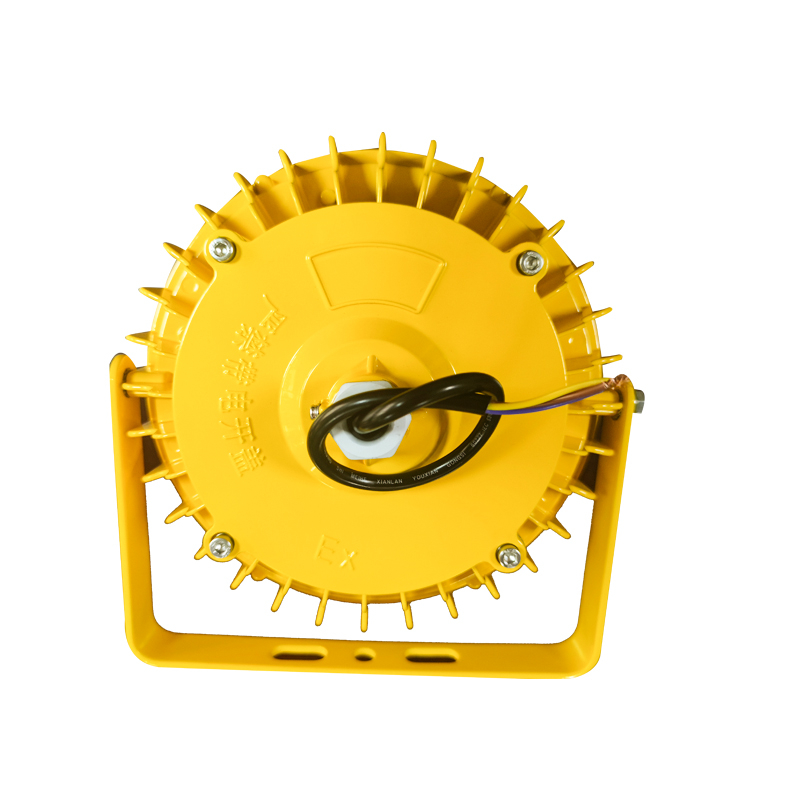

BFC8800E LED explosion-proof floodlight 30W-70W

The shell is made of ZL102 aluminum alloy die-casting, which has high-intensity impact resistance. The surface is sprayed by the powder anti-ultraviolet powder. The coating is uniform and the adhesion is superior.

Product Documentation

Scope

In order to meet petroleum, petrochemical, metallurgy, railway, power plant,Chemical industryWait for the needs of the flammable and explosive field to develop and develop and produceBFC8800E LED explosion-proof pan-light light.Applied toArea 1 and 2 dangerous places; L suitable for the explosive gas environment of Class IIA, ⅡB, and Ⅱc; suitable for the temperature T1-T6 group environment; variousFlammable and explosive place、Device and facilitiesVarious indoor and outdoorOperationillumination.

Features

Shell adoptionZL102 aluminum alloy die-casting type has a high-intensity impact resistance. The surface is sprayed by powder resistance with ultraviolet light. The coating is uniform and the adhesion is superior.

Transparent parts use tempered glass, Anti-impact energy ≥5J, anti-aging, low temperature resistance, and light transmission rate of more than 95%. It can work normally in various harsh environments. According to environmental conditions, you can choose SUS04 stainless steel mesh cover.

Drive power, power factor for wide voltage work≥0.95, efficiency ≥87%, has short-circuit and opening protection functions, and has passed national explosion-proof certification.

Using high light efficiency, high color rendering, small light failureLED light source.The scientific light design, the light is evenly soft and not glare.

Use exposed fastenerSUS304 stainless steel, never rust, durable.

Advanced optical software design has a wide light coverage, uniform beam, and superior anti-glare.

Installation method: A variety of installation methods such as top-level, side wall, boom type, etc., can be selected according to the on-site working environment.

Technical parameter

name    say

LED explosion-proof pan

Light    source

LED

Emergency power

30W-70W

Explosion-proof

Ex d II C T6

Input voltage

AC220V/50Hz

Protection level

IP66

Anticorrosive grade

WF2

Introduce cable

Φ8-Φ10mm

Ambient temperature

-20~+40

Life

100000h

Appearance

Φ240×140mm

Heavy    quantity

3.0KG


Light curve

Installation size
