Products

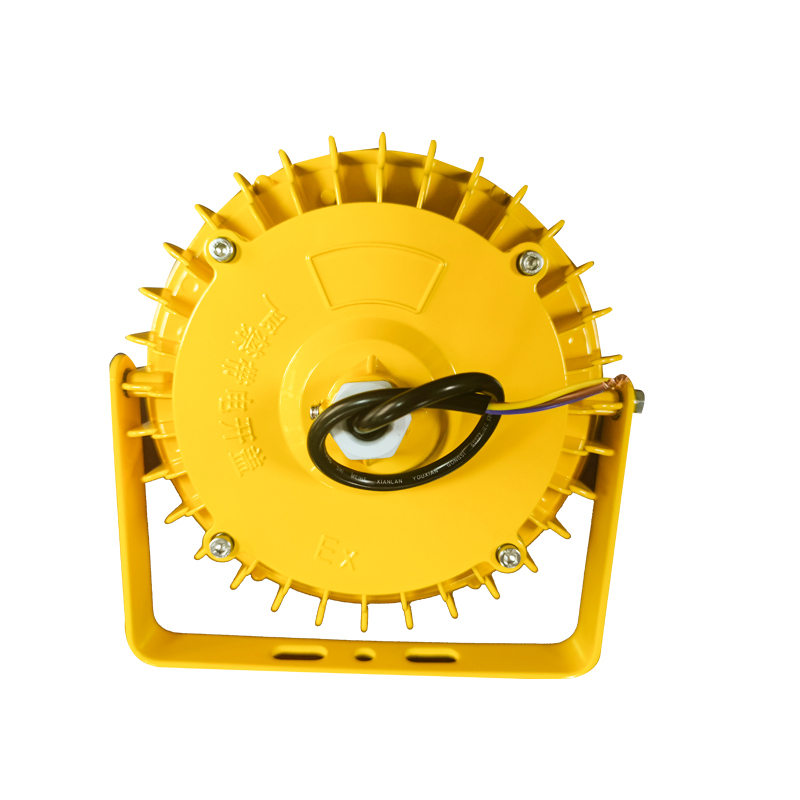

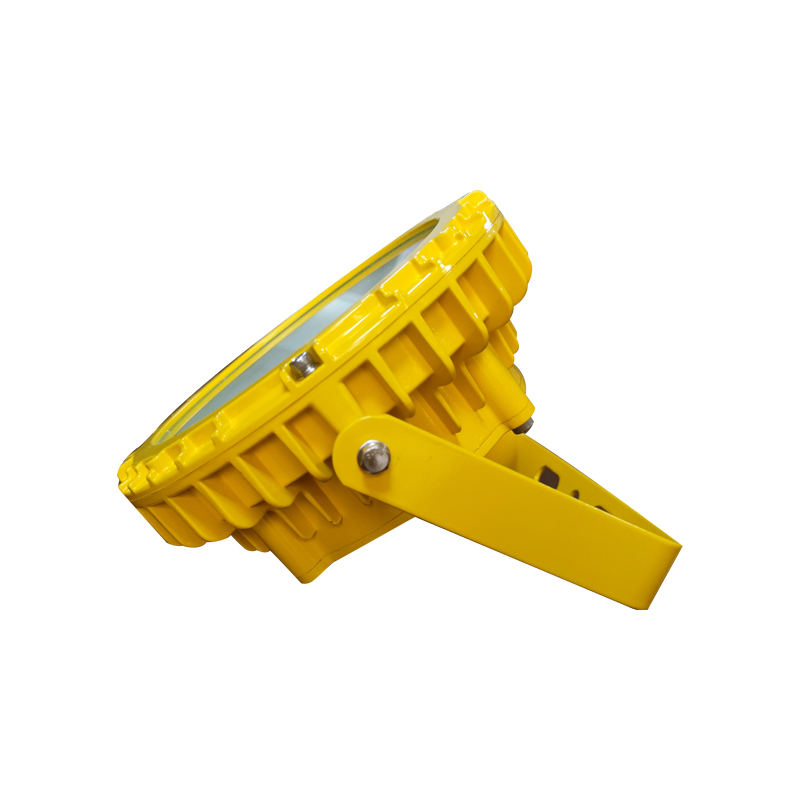

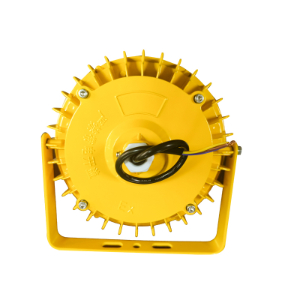

BFC8800E LED explosion-proof pan-light lamp 70W-120W

The transparent parts use tempered glass, with anti-impact energy ≥5J, anti-aging, low temperature resistance, and light transmission rate of more than 95%. It can work normally in various harsh environments. According to environmental conditions, you can choose SUS04 stainless steel mesh.

Product Documentation

Scope

In order to meet petroleum, petrochemical, metallurgy, railway, power plant,Chemical industryWait for the needs of the flammable and explosive field to develop and develop and produceBFC8800E LED explosion-proof pan-light light.Applied toArea 1 and 2 dangerous places; L suitable for the explosive gas environment of Class IIA, ⅡB, and Ⅱc; suitable for the temperature T1-T6 group environment; variousFlammable and explosive place、Device and facilitiesVarious indoor and outdoorOperationillumination.

Features

Shell adoptionZL102 aluminum alloy die-casting type has a high-intensity impact resistance. The surface is sprayed by powder resistance with ultraviolet light. The coating is uniform and the adhesion is superior.

Transparent parts use tempered glass, Anti-impact energy ≥5J, anti-aging, low temperature resistance, and light transmission rate of more than 95%. It can work normally in various harsh environments. According to environmental conditions, you can choose SUS04 stainless steel mesh cover.

Drive power, power factor for wide voltage work≥0.95, efficiency ≥87%, has short-circuit and opening protection functions, and has passed national explosion-proof certification.

Using high light efficiency, high color rendering, small light failureLED light source.The scientific light design, the light is evenly soft and not glare.

Use exposed fastenerSUS304 stainless steel, never rust, durable.

Advanced optical software design has a wide light coverage, uniform beam, and superior anti-glare.

Installation method: A variety of installation methods such as top-level, side wall, boom type, etc., can be selected according to the on-site working environment.

Technical parameter

name    say

LED explosion-proof pan

Light    source

LED

Emergency power

70W-120W

Explosion-proof

Exdiict6GB (Gas)

EXTDA21IP66T80 ° C (dust)

Input voltage

AC220V/50Hz

Protection level

IP66

Anticorrosive grade

WF2

Introduce cable

Φ8-Φ10mm

Ambient temperature

-20~+40

Life

100000h

Appearance

Φ260×194mm

Heavy    quantity

4.6KG



Light curve

Installation size
