Scope
|

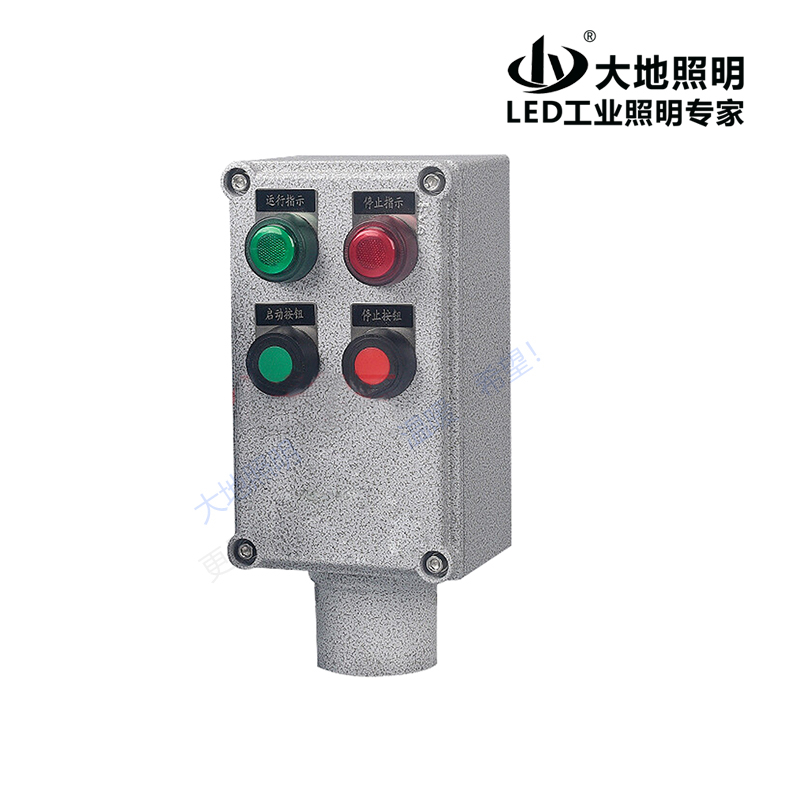

The BLC explosion-proof operation column products are suitable for the gas mixture dangerous places 1 and 2 areas; it is suitable for the explosive gas environment of class ⅡA, ⅡB, and Ⅱc; it is also suitable for flammable dust places.
|
Features
|
■The shell is formed with ZL102 aluminum alloy die. After cleaning at a high-speed jet, the surface is pressed on electrostatic spray plastic;
■ Streamline shape, surface color division, better anticorrosive performance;
■ The wiring terminal uses the internationally renowned brand La'an-type wiring terminal, which improves product safety;
■ More than 30 functions of universal switches can be freely selected by users, which can be made according to the requirements;
■ Explosion-proof operation column can be equipped with a metal handle, which is suitable for low temperature environments;
■ Good product protection performance, directly used for outdoor;
■ Cable wiring (please indicate the steel pipe wiring).
|
Technical parameter
|
Explosion-proof signs: EXD II BT6GB, DIPA21 TA.T6
Rated voltage: 220V/380V (if you have special requirements, please indicate)
Rating current: 10A
Category: AC-15, DC-13
Protection level: IP65
Corruption level: WF1 *WF2
Interior components: button, meter, light button, indicator, switch
Steel thread: G1_ 進(jìn) 進(jìn) 進(jìn) specifications (if you have special requirements, please indicate)
Cable outer diameter: suitable for 9mm ~ 18mm cable
Installation method: hanging, vertical formula
|
|
