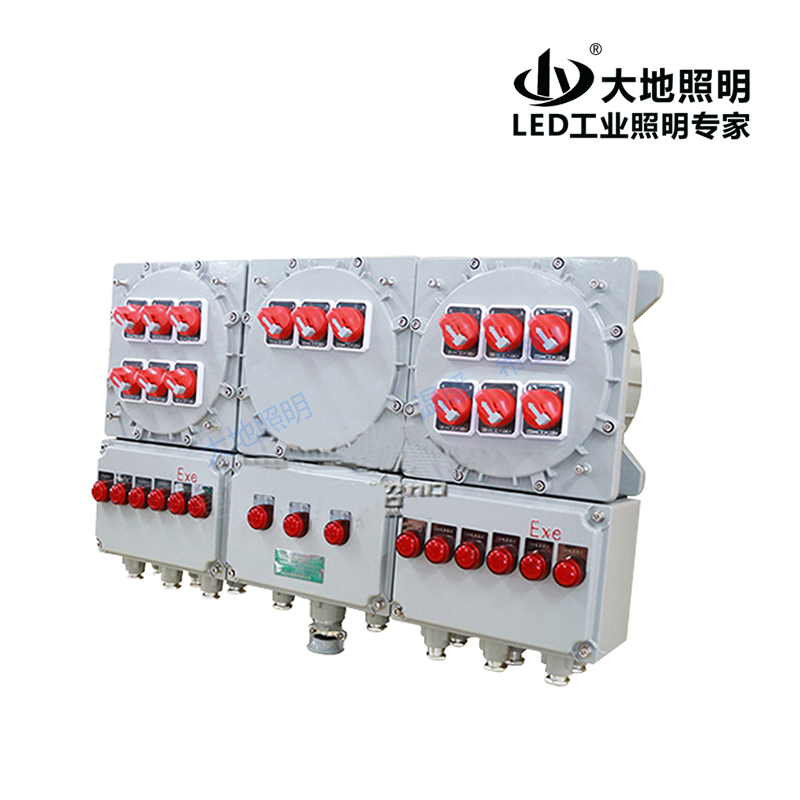

BXM (D)-Q-X-Z-K-L explosion-proof power distribution box

The shell is made of aluminum alloy alloy die-casting, the surface is high-voltage static spraying, and has a high strength. The switch adopts a new manipulation mechanism and can install various electrical components for industrial use internally.

Product Documentation

Scope

1. Applicable to the explosive gas environment area 1 and 2 areas;

2. Suitable for combustible dust environments 20, 21 areas, 22 areas;

3. Suitable for IIA, IIB, IIC-level explosive gas environment;

4. Suitable for the temperature level of T1 ~ T6;

5. It is widely used in explosive dangerous environments such as refining, storage, chemicals, medicine, textiles, printing and dyeing, military and military facilities;

6. Power power distribution for lighting or power lines.

Features

The shell is made of aluminum alloy die-casting, the surface is high-voltage static spraying, and has a high strength. The switch adopts a new manipulation mechanism.Various electrical components for industrial can be installed inside, such as: small circuit breakers, plastic shell-type circuit breakers, AC contactors, heat relays, universal switches, measuring instruments and measuring instruments and measuring instruments and measuring instruments and measuring instruments and measuring instruments and measuring instruments and measuring instrumentsPCL controller, etc.

You can open an observation window on the cover according to the requirements. It is convenient for reading. The product uses a modular design. There are many cavities that can be spliced ??freely. Can meet various on-site needs;

Protection levelIP65 can be used directly for outdoor.

■ It can be made according to customer requirements.

Technical parameter

model

BXM (D) Explosion-proof power distribution box series

Execution standard

GB3836.1、GB3836.2、GB12476.1、GB12476.5

Explosion-proof

Exde IIB T4/T5/T6;Ex tD A21 IP65 T80℃

Rated voltage

AC220/380V

Main circuit rated current

≤400A

Number of branches

4、6、8、10、12

Supporting circuit rated current

0-630A

Protection level

IP65

Anticorrosive grade

WF2

Introduction

G1/2”~G3”

Use cable outer diameter

Φ10mm~φ80mm

Introduction

Go down or down or go up and go up (routine to go down and down, please indicate in other directions)

Installation method

Hanging, vertical formula
