Scope
|
|

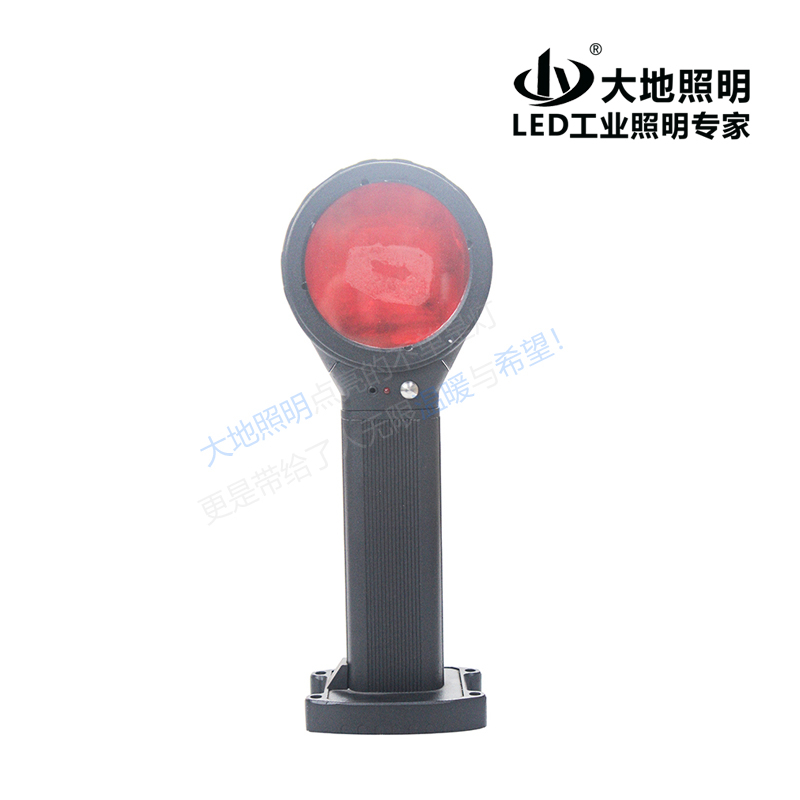

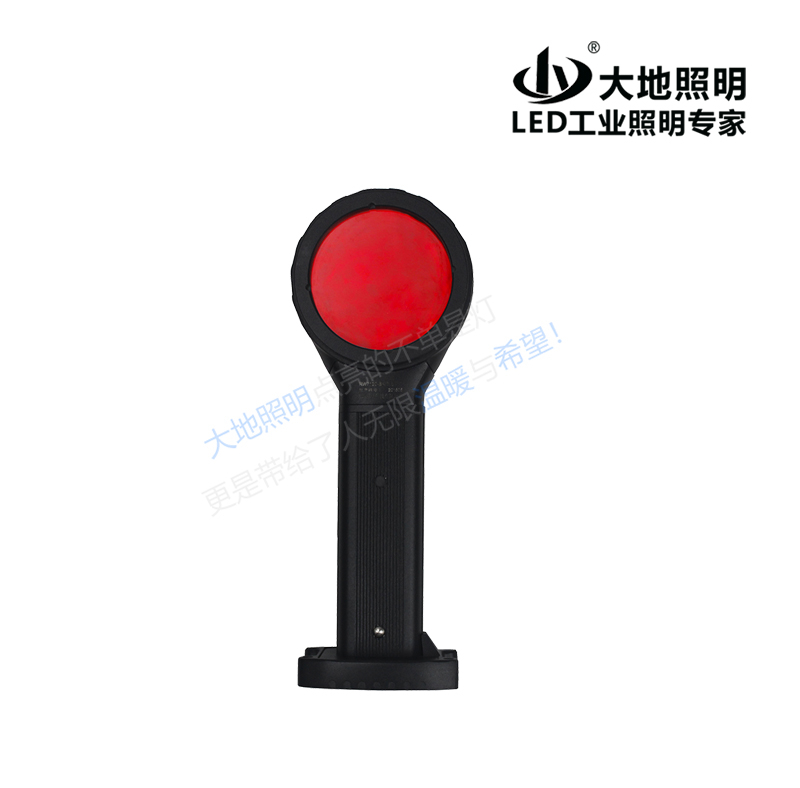

In order to meet the needs of railway, metallurgy, electricity, public security, oil fields, petrochemicals, etc.The RW7100B double-sided position light is widely suitable for various special places to make warning signs, and it is also suitable for municipal, construction operations and monitoring, rescue, and rescue staff for signaling and positioning instructions.
|
|
Features
■ Warning time: High energy lithium batteries have a large capacity, long lifespan, no memory, low self discharge rate, and a continuous working time of not less than 12 hours after one charge, which can meet the needs of working all night.
■ Applicable environment: Choose high-hardness tempered glass lenses and high-strength alloy shells. It has extremely high wear resistance, is not easy to scratch, and can withstand strong collisions and impact.Good sealing, strong waterproof ability, can work normally in various harsh environments in the wild; ■ Warning range: The light source uses an imported ultra-high brightness LED, which can issue warnings, signals or display orientations in the opposite direction at the same time. Unilaterally can be the maximum to the maximum one-way.The distance is 1600 meters.
■ Warning signal: The luminous area is large, the brightness is uniform, and it has a good rain and mist penetration, which can provide a striking warning signal.
■ Usage characteristics: It can be held and moved for use, and can also be fixed on the surface of a metal body or hung on a thin wall using magnetic force. The lamp body can be adjusted and retracted according to needs, with simple operation and easy portability.
■ Protection device: equipped with a low voltage display device to remind timely charging; Intelligent chargers have short-circuit protection and charging display devices.
■ Simple operation: beautiful appearance, light structure, can be held by hand, you can also use magnetic adsorption on the metal surface, or buckle on the thin wall and hang it on the train plug-in.The elasticity on the body is lock, stretching or contraction at a constant speed, and the elastic stuck is locked in the corresponding round groove.
■ Personal customization: The selection of three-color light sources in red, yellow, and green can be selected according to actual needs.
Technical Parameter
|
|
name
|
parameter
|
|
Rated voltage
|
3.7V
|
|
Rated capacity
|
1.2Ah
|
|
Signal light source
|
Working voltage
|
3.0~4.2mA
|
|
Working current
|
100mA
|
|
Flash frequency
|
1.5±0.5Hz
|
|
Average life life
|
100000h
|
|
Continuous working time
|
12h
|
|
Charging time
|
6h
|
|
Battery life
|
about1000 cycle
|
|
Protection level
|
IP65
|
|
Control method
|
Line control+Remote control
|
|
Appearance
|
length
|
shrink
|
268mm
|
|
Open up
|
350mm
|
|
diameter(Lamp head)
|
100mm
|
|
Heavy quantity
|
0.8kg
|
|
|
