Scope
|
|

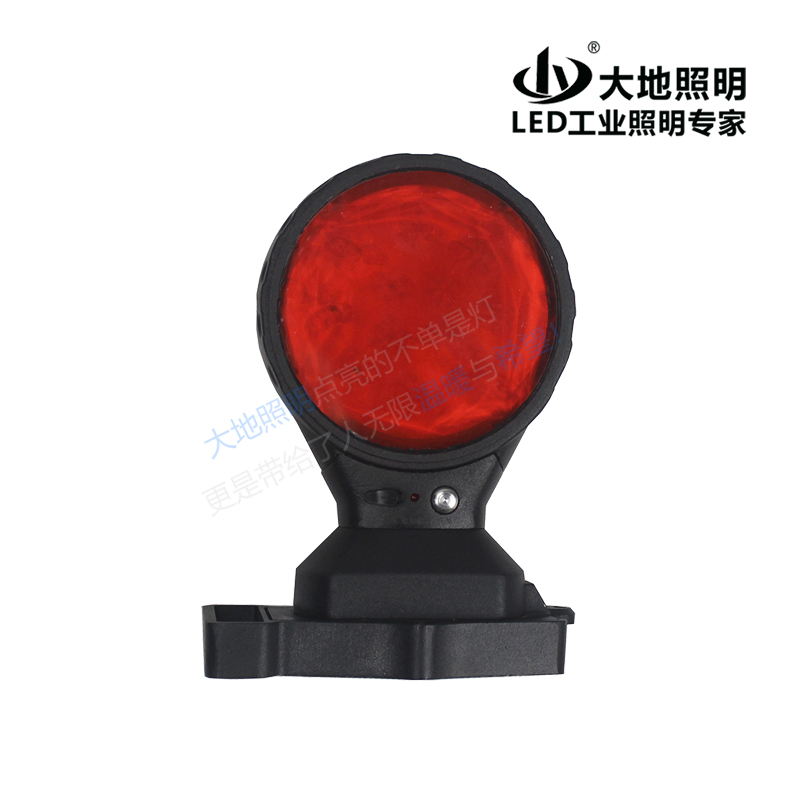

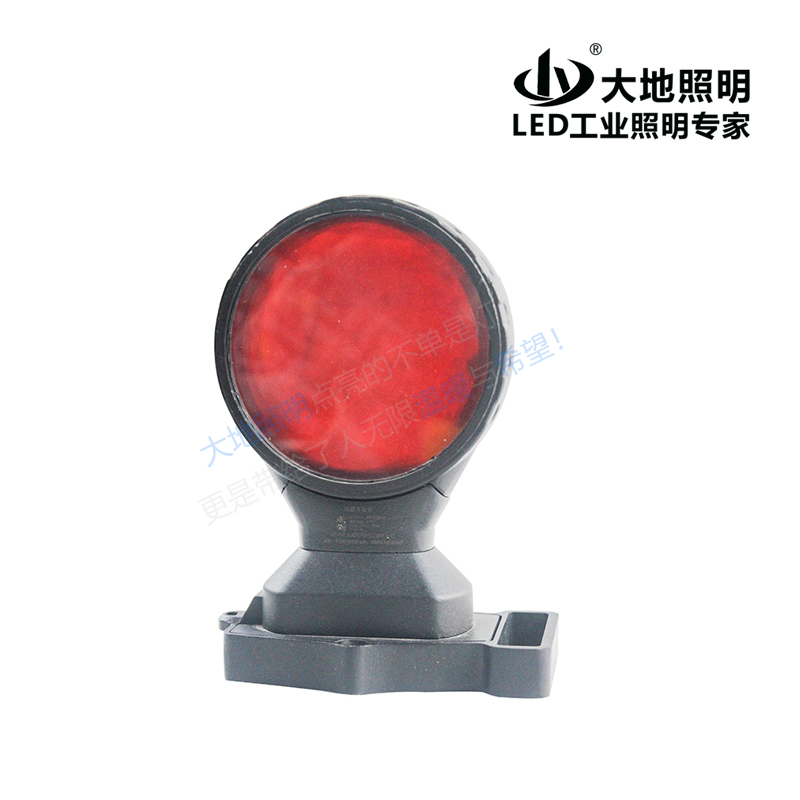

RW712C double-sided azimal lights are suitable for signal instructions for railway, shipping, transportation management and other industries and venues; various municipal, construction, rescue, and rescue staff make warning signs, positioning instructions and signal contact.
|
|
Features
■Double-sided position lightAdopt high concentration, ultra-high brightnessThe LED light source can issue warnings, signals or display orientations in the opposite direction at the same time, with a one-way visible distance of 1500 meters.
■The light emitting area is large, the brightness is uniform, and it has a good rain and mist penetration, which can provide eye-catching warning signals.
■High-energy memory lithium batteries, high capacity, long life, excellent charging and discharge protection circuit design, low self-discharge rate, safe and environmental protection.
■The high-hardness tempered glass lenses and high-strength alloy shells are selected. It has extremely high wear resistance, difficult to scratch, and can withstand strong collisions and impacts.Well sealing, strong waterproof ability, and work normally under all kinds of harsh environments and climatic conditions outdoors.
■The appearance is beautiful, the structure is lightweight, it can be held by hand, it can also be adsorbed on the metal surface, or buckled on the thin wall and inserted on the train plug-in. The operation is simple;Azimal lampPress the elasticity on the lamp body and press the lock, stretch or shrink at a constant speed, and press the stuck in the corresponding round slot.
■There is a low voltage monitoring to remind time charging; smart chargers have short-circuit protection and charging display devices.
■Position lampsThe selection of red, yellow, and green light sources can be selected according to actual needs.
technical parameter
|
|
Parameter name
|
Value
|
|
Rated voltage
|
3.7V
|
|
Rated capacity
|
1.8Ah
|
|
LED light source
|
Working current
|
100mA
|
|
Flash frequency
|
1.5Hz
|
|
Average life life
|
≥100000h
|
|
Continuous discharge time
|
Flash
|
≥30h
|
|
Long
|
≥12h
|
|
Charging time
|
6h
|
|
Battery life
|
about2000 cycle
|
|
Appearance
|
100*45*160MM
|
|
weight
|
600g
|
|
|
