Products

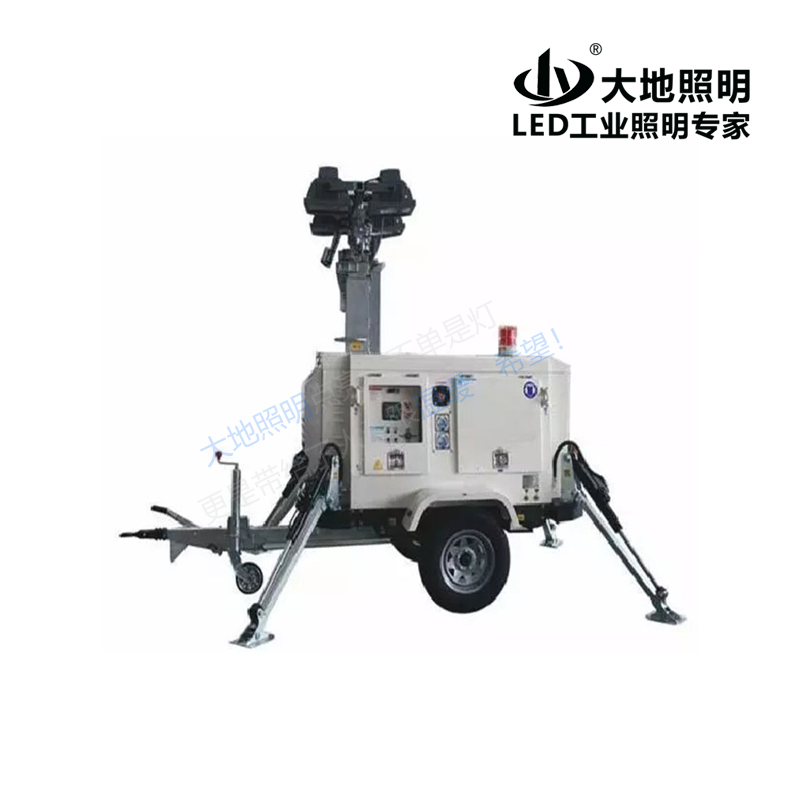

SFW7000-X full-service automatic lifting work lighthouse

The unique elliptical lampshade design enables the light to shoot straight, providing a bright lighting effect for the construction site.Without any tools, each lamp can be adjusted independently.Quick power connection is more easy to disassemble before transportation.The main mast that can rotate at 360 degrees is allowed to adjust the light according to different needs.

Product Documentation

Scope

In order to meet customers in oil, chemical, steel, metallurgy, mine, fire and gas, power, public security forces, flood prevention rescue, diving rescue, rescue, disaster relief, SFW7000-X all-round automatic lifting work developedLighthouse, to meet the needs of various large-scale construction operations, accidents, rescue and disaster relief, such as railway, electric power, metallurgy, metallurgy, oil fields, and public security.

Features

The unique elliptical lampshade design enables the light to shoot straight, providing a bright lighting effect for the construction site.Without any tools, each lamp can be adjusted independently.Quick power connection is more easy to disassemble before transportation.CanThe 360 -degree rotating main mast is allowed to adjust the light according to different needs.The compact and enhanced lighthouse provides extraordinary lighting. The enhanced and trailer-type lighthouse is characterized by a compact and light design to make transportation easy.

Advanced advantages:

█ The main shell strap of the machine is locked and treated with powder coatings to protect all software in the subject all over the weather.The main mast and lampshade are galvanized, which provides excellent corrosion effects.

█ The machine itself has four hydraulic jack supporting racks, which can provide reliable and balanced support in the high and low construction sites, or under strong winds.

█ The independent intelligent engine control module provides comprehensive detection to protect the engine and brings great convenience to daily maintenance.

█ Reliable 1500 rpm | Democratic cold-cooling power sets in minutes increase work life, and even in cold weather, it comes with preheating function, and it is still easy to start.The engine of the engine is 100L, and the engine is automatically turned off when the low oil volume and the temperature of the coolant are too high to ensure that the engine is not damaged.

█ Configured brackets are suitable for use on highways, and provide combined spherical bolt, 14-inch tires, and 4 kg of manual support racks.

█ Customized for you: In order to meet the user's personalized needs, such as the standard configuration of this product cannot meet the user's work needs, our company can be raised at the number of lamp heads, power, pan-light or concentrated air rods, and telescopic rods.The height is adjusted according to user requirements.

Technical parameter

Light source

Golden halide lamp

power

4x1000W

frequency

50hz

Shell material

Aluminum

Driver

Electronic

Optical flux

4 ×10500lm

quantity

4Lamp

Lightness

50Mi Small than equal to65LX

Shell protection

IP65

Insulation level

I

The angle of the lamplet rotation

Vertical0-90Rotating electric rotation

Main light rod rotation

about360Spend

      Main pole

structure

8Festival9Mi (Rich net height)

Total height

10Rice (the highest point of the lamp and the vertical distance from the ground)

Main rod structure

Wire linkage

Surface treatment

Hot-dip galvanized

characteristic

Hydraulic lift

Lift time

The highest point rising incident is less than40S  The decline incident is less than18S

Whole machine parameter

Weight

1200kg

Special size

3200*1560*2550

Engine brand

Kubo Tian

Electrical exercise model

D1105

   Generator brand

Odi motor

Generator power

8KW

The rated power of the generator set

 8KW

The maximum output power of the generator

8.5KW

Fuel tank capacity

100L

Fuel consumption ratio

KW/H=0.65

 Running time

62

Lubricant label

CDAbove the level

Cooling method

Water-cooled

Way of support

hydraulic pressure

Walking style

Traction

Way of handling

Support the forklift hole  Support crane hole
