Products

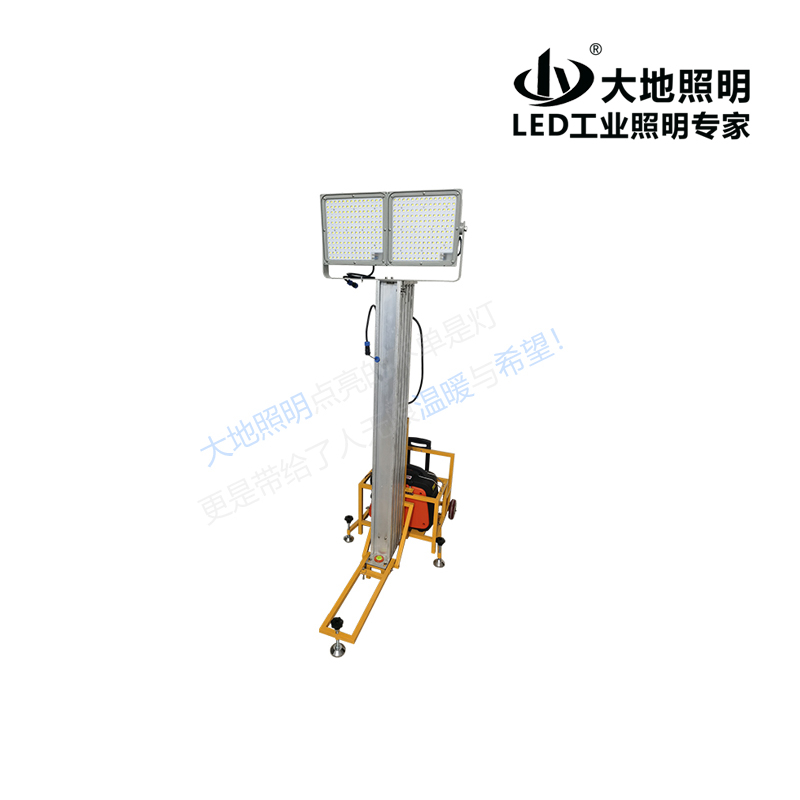

SFW7000E LED all-round mobile work light

Full automatic lifting function, the light head can quickly adjust the illumination direction to meet the requirements of a comprehensive and multi-angle irradiation requirements, and use an ultra-mute gasoline frequency conversion generator to provide the equipment with a long-term reliable power.

Product Documentation

Scope

In order to satisfy the SFW7000E LED all-round mobile working lights developed by lighting needs in industries such as oil, chemical, steel, metallurgy, mine, mines, fire and gas, power, public security forces, flood control, diving rescue, diving rescue, rescue and disaster relief industries.It is suitable for outdoor mobile lighting places such as small and medium-sized repair, construction site and emergency rescue; it is suitable for emergency lighting places such as railway work and power supply repair.

Features

█ Fully automatic lifting function (one health lifting, can be stopped at any height), the light head can quickly adjust the illumination direction to meet the full-scale multi-angle irradiation requirements.

█ uses an ultra-mute gasoline frequency conversion generator to provide a long-term reliable power for the equipment.

█ Excellent lighting performance, full-angle and multi-angle irradiation angle, long-term reliable power, can meet the lighting needs of various types of emergency lighting places.

Modular design concept, base component and mast component fast-disassembly structure design,The "luggage" support mode is convenient for customers to move.

█ The triangular support structure, horizontal calibration, so that the complex terrain is no longer complicated.

█ Customized for you: In order to meet the user's personalized needs, such as the standard configuration of this product cannot meet the user's work needs, our company can be raised at the number of lamp heads, power, pan-light or concentrated air rods, and telescopic rods.The height is adjusted according to user requirements.

Technical parameter

Light source

Golden halide lamp

power

4x1000W

frequency

50hz

Shell material

Aluminum

Driver

Electronic

Optical flux

×10500lm

quantity

4Lamp

Lightness

50 meters less than equal to 65lx

Shell protection

IP65

Insulation level

I

The angle of the lamplet rotation

Vertical direction 0-90 degrees electric rotation

Main light rod rotation

360 degrees left and right

      Main pole

structure

8th section 9 meters (a net height of the pole)

Total height

10 meters (the highest point of the lamp and the vertical distance from the ground)

Main rod structure

Wire linkage

Surface treatment

Hot-dip galvanized

characteristic

Hydraulic lift

Lift time

The highest point rising incident is less than 40s decrease incident less than 18S

Whole machine parameter

Weight

1200kg

Special size

3200*1560*2550

Engine brand

Kubo Tian

Electrical exercise model

D1105

Generator brand

Odi motor

Generator power

8KW

The rated power of the generator set

 8KW

The maximum output power of the generator

8.5KW

Fuel tank capacity

100L

Fuel consumption ratio

KW/H=0.65

Running time

62

Lubricant label

CD level above

Cooling method

Water-cooled

Way of support

Hydraulic

Way of walking

Traction

Way of handling

Support the forklift hole to support the crane hole
