Products

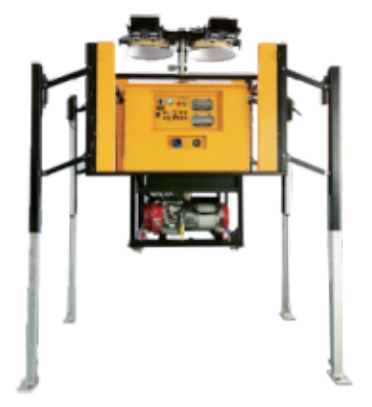

SFW7000-H all-round mobile lighting tower

The lift uses a pneumatic lifting rod, and the height is 7 meters; the power supply is powered by the power supply. It can work continuously for 28 hours. In a place with municipal electricity, 220V AC power supply can also be connected to achieve long-term lighting.

Product Documentation

Scope

In Order to meet the neededs of Railway, Power, Public Security, Fire, Municipal, Bridge, Tunnel and Other Industries, The Construction Operation Lighting, And Develop and ProducesFW7000H Type Move Lighting Tower, suitable for various large-scale construction operations,Large-scale and high brightness lighting on the scene of mining operations.It is suitable for maintaining large-scale lighting such as repair, accident treatment, flood prevention, flood resistance, and rescue disaster relief.

Features

█ Composition of high-efficiency LED energy-saving lamp heads (pan-light type) and two groups of high-efficiency gas discharge gold halide lamps (concentrated type), high illuminance, large coverage, lighting far and nearly, the light source life is more than 10,000 hours, especially specialSuitable for large outdoor work lighting.

█ The lighthouse lighthouse adopts a pneumatic lifting rod, and the height is 7 meters; the four lamp heads can adjust the irradiation angle of about 130 degrees up and down at about 130 degrees, so that the light covers the work site.

█ The power supply of the generator can work for 25 hours to fill the fuel. In a place with municipal electricity, it can also connect 220V AC power supply to achieve long-term lighting.

█ Manual switch controls the lamps often turn on, simple operation, safe and reliable;

█ The overall structure of the lighthouse is compact and stable in performance. It can work normally under various harsh environments and climatic conditions. The level of wind resistance is 8 levels.

█ Optimized structural design, convenient movement movement, can be controlled by electric control on the pickup truck trunk by electric control, the humanized design

█ The control system of the lamp is fixed on the engine chassis, and the various tasks of the device can be controlled by the control system.

█ Customized for you: In order to meet the user's personalized needs, such as the standard configuration of this product cannot meet the user's work needs, our company can be raised at the number of lamp heads, power, pan-light or concentrated air rods, and telescopic rods.The height is adjusted according to user requirements.

warn:

1. When machine work, non-professional personnel shall not approach.

Technical parameter

Parameter name

Value

model

SFW7000-H

Main light lighting power

2700W

Auxiliary lighting

2×28W

Light source

LED

Loading and unloading/Expand

DC electric

Loading time

180S

Lighthouse lifting method

pneumatic

Lighthouse lifting height

7M

Protection level

IP65

Lighting angle angle

45 degrees

Maximum expansion width

2.1 meters

Maximum distance

1.1 meters

Way of operation

Integrated panel control

Generator

Honda generator

Fuel tank capacity

50L

The generator is filled with fuel continuous working hours at a time

28h

Appearance

1400×1800×2100mm

weight

650KG
